A Smith machine combines barbell training with a mechanically guided movement. The Smith bar travels along a defined track and, depending on the design, can be locked into various positions or limited by additional safety stops. This makes training significantly different from using a free barbell, where the path of motion is controlled entirely by the person training.
Modern Smith machines today go far beyond the classic design. In addition to purely guided systems, there are Smith machines with half racks or power racks, Smith machines with lat pulldowns and cable pulleys, as well as complete multi-gyms that combine several training methods. Accordingly, the current motion-sports range extends from the Smith Machine Compact, which is only 198 cm high, to comprehensive systems like the GMX-2000, which includes a Smith machine, half rack, dual cable pulley, and additional training stations.
Which muscles can you train on a Smith machine?
With a Smith machine, you can perform numerous exercises for the legs, glutes, chest, shoulders, and back. Which muscle groups are prioritized depends on the exercise, body position, weight bench settings, and range of motion.
Classic Smith machine exercises include:
- Squats and squat variations
- Bulgarian split squats and lunges
- Bench press and incline bench press
- Shoulder press
- Hip thrusts
- Calf raises
- Bent-over rows and other pulling variations, provided the equipment design offers sufficient room for movement
When combined with a lat pulldown or cable pulley, the range of exercises further expands to include lat pulldowns, cable rows, bicep curls, tricep pushdowns, and other cable exercises. A Smith machine is therefore not limited to a single muscle group. Especially in a home gym, it can serve as a central station for a large part of your strength training.
Building muscle with the Smith machine
The Smith machine integrates very well into training focused on muscle growth and hypertrophy. Because of the guided bar path, movements can be performed consistently, and training weights can be systematically increased over a longer period. Especially with exercises like bench press, squats, shoulder press, or hip thrusts, the user can focus more on targeting specific muscles and on repetition technique, as the lateral movement of the Smith bar is structurally restricted.
However, this does not mean that a Smith machine generally builds more muscle than free weights. Training volume, load intensity, progressive overload, range of motion, nutrition, and recovery remain the decisive factors. Therefore, the Smith machine is suitable both as a primary piece of equipment and as a supplement to free barbell and dumbbell training.
Squats on the Smith machine
Smith machine squats are among the most frequent exercises performed on this equipment. The guided bar allows for various foot positions and thus different movement variations. It is crucial that the body position aligns with the specific bar path of the machine in question. Unlike a free squat, the bar cannot deviate forward or backward as desired. Therefore, your stance should not simply be adopted from a free squat but should be adjusted to the specific Smith machine and your own anatomy.
Depending on the model, split squats, lunges, and calf raises can also be effectively performed on the Smith machine.
Bench press on the Smith machine
For bench press on the Smith machine, a suitable weight bench is required. By adjusting the position of the bench, the Smith bar can be used for flat bench, incline bench, and—if the bench and equipment allow—other pressing variations.
An adjustable weight bench therefore significantly increases the training options of a Smith machine. For incline bench press or shoulder press, you should also check whether the bench, backrest, and Smith bar offer enough space for the desired starting position within the equipment's construction. In the case of rack/Smith combinations in particular, the same weight bench can subsequently also be used for free bench press on J-hooks.
Hip thrusts, split squats, and other leg exercises
In addition to squats, the Smith machine offers other interesting possibilities for leg and glute training. For the hip thrust, the guided Smith bar can be used to position the load reproducibly over the pelvis. For Bulgarian split squats or lunges, the guide reduces the lateral movement of the bar, while the leg position can still be adjusted to your training goals and mobility.
Depending on the design, variations such as calf raises or other single-leg exercises are also possible. This makes the Smith machine not just a device for classic squats and bench presses, but a tool that can cover a large portion of your lower-body training.
Starting weight of the Smith machine – why it varies by model
The starting weight of a Smith machine does not automatically equal the actual weight of the visible Smith bar. Depending on the construction, the bar may be partially counterbalanced by weights. For the Vision Fitness Smith Machine, for example, the specified starting resistance is 9.7 kg, even though the entire guide structure is significantly heavier.
Other Smith machines operate without corresponding counterweights. Therefore, you should not assume a universal "Smith bar weight" when comparing models. Especially for beginners, exercises with lower loads, or rehabilitation under professional guidance, a lower starting resistance can be relevant. For heavy strength training, on the other hand, the maximum load capacity of the Smith bar is the additional decisive factor.
Linear guide, sliding bearings, and feel of movement
The guide system also influences the training feel of a Smith machine. Some Smith machines work with sliding bearings on solid steel shafts, while others use linear ball bearings. The ATX MPX-780, for example, uses a quadruple linear ball bearing system, while various Smith machine options for ATX racks also rely on quadruple-bearing guides.
For the user, the technical term is less important than a smooth, tilt-resistant movement across the entire range of motion. There are also special systems with additional freedom of movement. The ATX Power Smith Rack, for example, combines a classic vertical Smith machine with a two-dimensionally mobile variant.
30 mm or 50 mm weight plates on the Smith machine?
Depending on the model, Smith machines can be equipped with 30 mm or 50 mm plate holders.
30 mm holders can be practical if you already own standard weight plates. 50 mm holders, on the other hand, are widely used in ambitious strength training and professional settings, allowing the use of classic Olympic weight plates. The ATX Smith Machine Compact, for example, comes standard with a 30 mm holder but can be optionally upgraded with 50 mm adapters. If you already own weight plates, you should definitely check the holder size before buying.
Training alone on the Smith machine
A common reason for purchasing a Smith machine is training without a partner. In classic systems, the Smith bar can be hooked into the guide at various points. In addition, many models feature separately adjustable safety stops or safety racks that can limit the range of motion. While these features make training easier to organize, they do not replace proper equipment setup and correct exercise execution. Before starting a working set, the starting position and safety stops should be adjusted to fit the specific exercise and desired range of motion.
Therefore, a Smith machine should not be reflexively described as "automatically safe." Rather, the construction offers additional possibilities for safety if they are used correctly.
Smith machine for beginners and advanced users
A Smith machine can be interesting for different training levels. Beginners often benefit from the reproducible bar path and the ability to learn movements with lighter added weight. Even so, attention should be paid to proper body positioning and controlled technique.

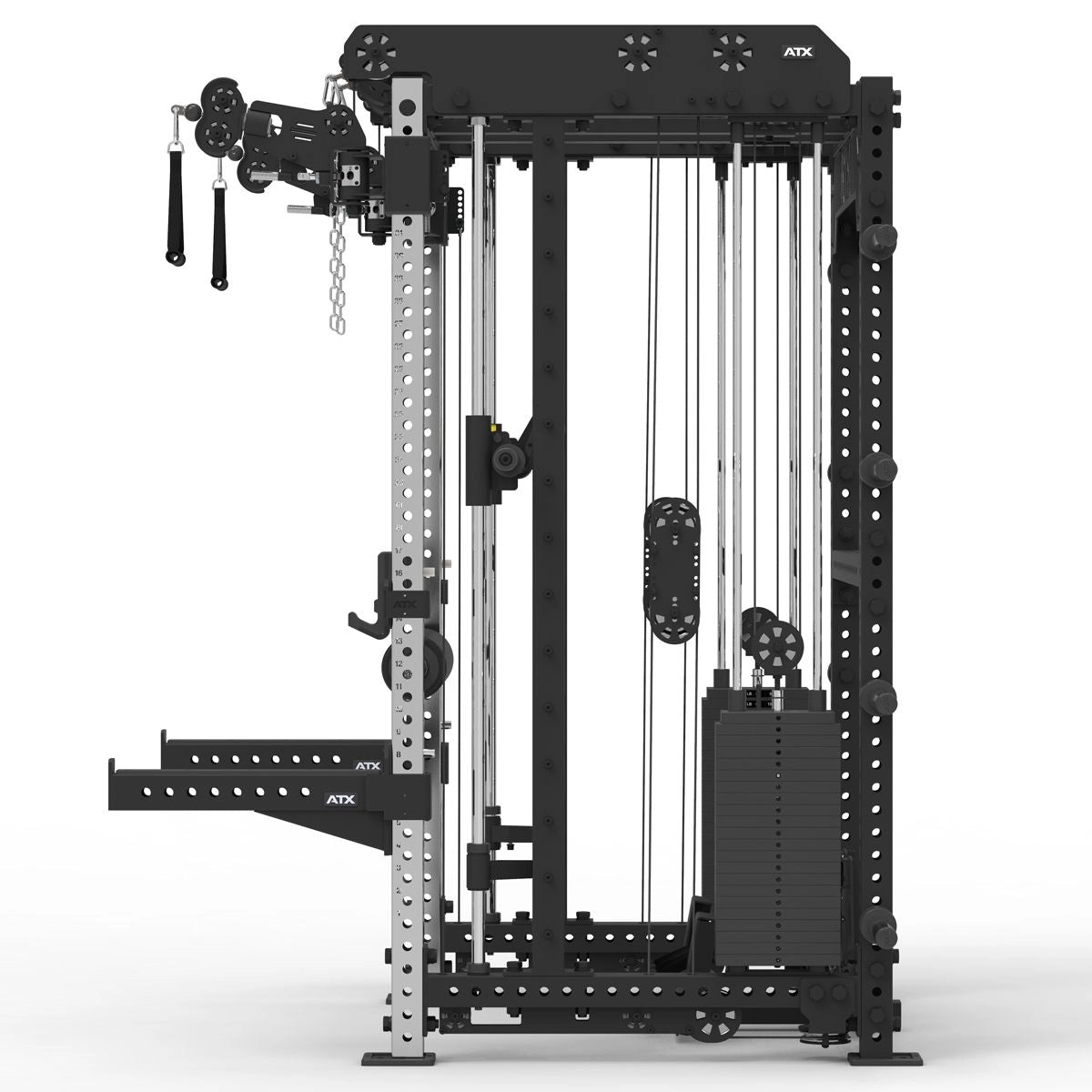

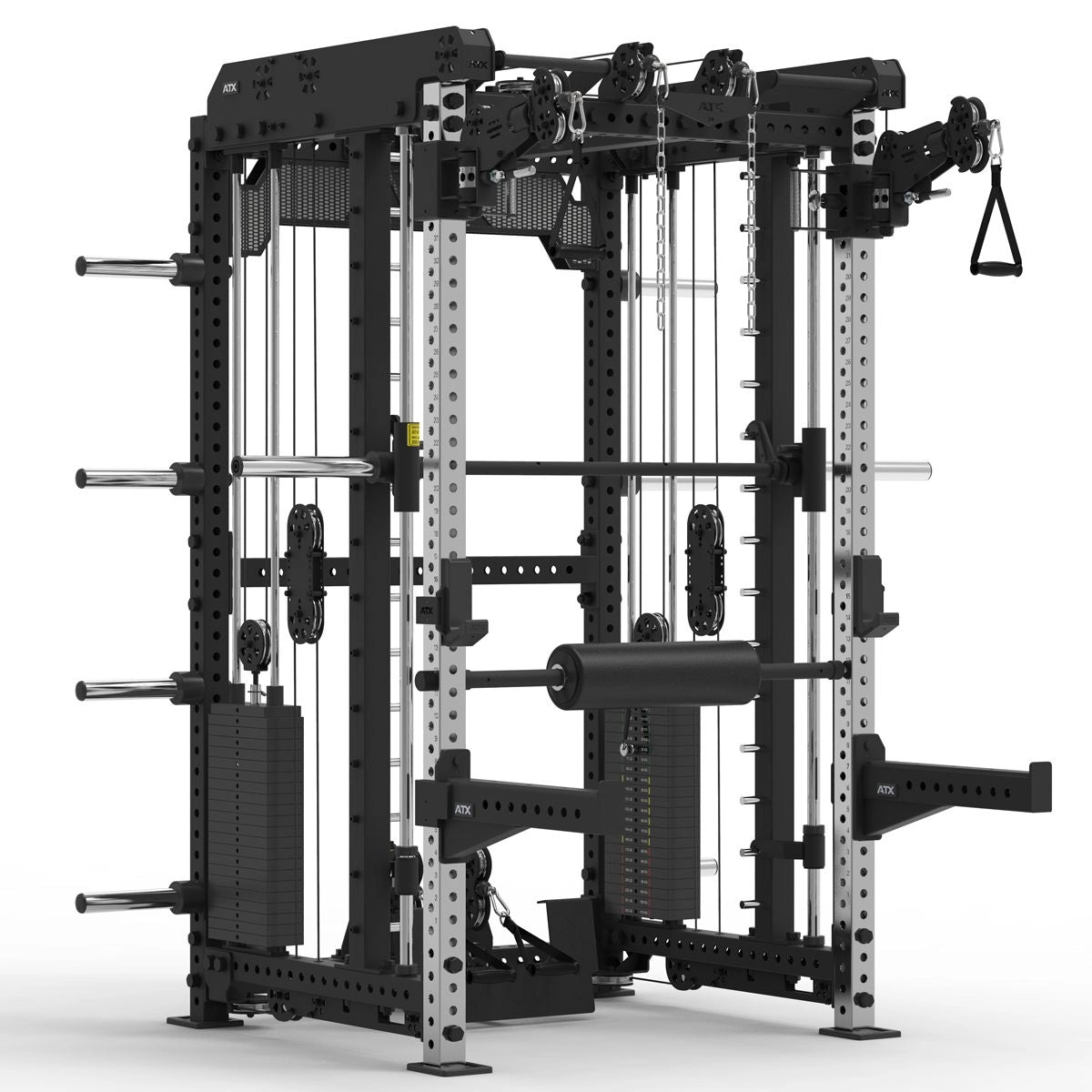

Advanced strength athletes often use Smith machines specifically for exercises where the focus is on loading a single muscle group, or they combine Smith training with free barbell exercises. Equipment that combines Smith machine and rack functions is therefore particularly flexible. The MPX-780, for example, allows for both free training in the half rack and guided training on the Smith bar.
Smith machine for the home gym
In a home gym, a Smith machine can consolidate multiple device functions into a single training area. It is important to consider more than just the machine's footprint. Space is required on the sides to load weight plates onto the Smith bar. In front of or within the station, there must also be enough room for the weight bench, body positioning, and various exercises.
For rooms with low ceilings, there are especially compact models. The ATX Smith Machine Compact is only 198 cm high, while the HRX-510 system with Smith machine is approximately 196 cm tall. This makes a Smith machine a viable option even for basements or rooms where classic high rack systems do not fit.
Smith machine with lat pulldown and cable pulley
Those who want to combine as many training forms as possible at one station can choose a Smith machine with a lat pulldown or cable pulley. This adds pulling exercises for the back, shoulders, and arms to your barbell training. The ATX Smith Machine 30 mm with lat pulldown, for example, operates with a 115 kg weight stack and a 1:1 ratio.
More comprehensive systems go even further. The ATX Multigym GMX-2000 combines a linearly guided Smith machine with a half rack, dual cable pulley, 2 × 90 kg weight stacks, lat pulldown attachment, pull-up and dip station, and a leg press. Such a multi-gym can be particularly attractive if you want to minimize the number of separate pieces of equipment in your home gym.
Smith machine in the gym and professional training area
For studio use, frequency of use, load capacity, and structural robustness play a more significant role than in occasional home training.
Professional Smith machines often feature heavy frame constructions, high training loads, and guide systems designed for repetitive use. The Vision Fitness Smith Machine, for example, is rated for a 250 kg maximum training weight and is positioned for professional training environments. Various ATX systems, such as the MPX-780, are also certified according to EN 20957 Class S for studio use.
For commercial use, the specific certification or manufacturer approval of the respective model should therefore always be checked.
