ATX® connecting strut for free stands

ATX® connecting strut for free stands

The connecting strut/tube stabilizer ATX ^® Free Stands is compatible with the following models:

• ATX-SQS-650 - Can be mounted at the bottom and/or top!
• ATX-SQS-750 - bottom mounting*
  *For this model, the weight plate holders must be dismantled, they are therefore no longer usable!
• ATX-DICO-SQS - Can be mounted at the bottom and/or top!


The connecting strut serves as a stabilizer and fixes the free stands to international dimensions.

product details

Quick and easy retrofitting for the models mentioned above!

• Two types of mountings are supplied as standard -
  1. Fixed screw nut - for a firm permanent installation
  2. Hand screw knob - for mobile installation
• for a fixed distance and even more stability
• extended range of exercises such as pull-ups or as a hanging bracket for power bands

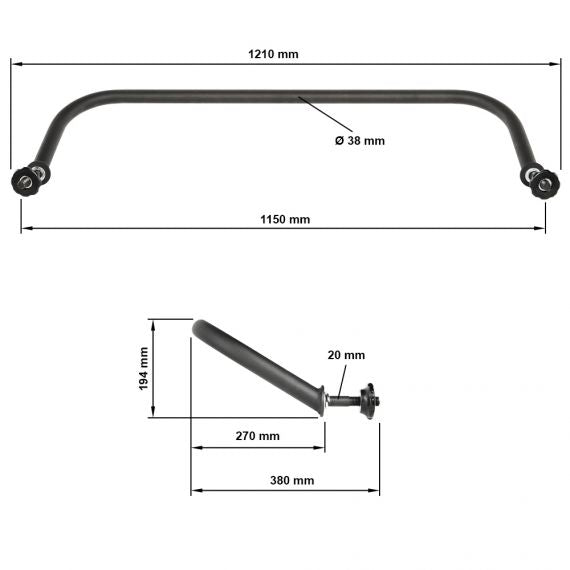

• Total width: 1210 mm
• Width center hole: 1150 mm
• Height: 194 mm
• Depth/projection: 270 mm
• Thickness/diameter tube: 38 mm
• Thickness/diameter of screw bolt: 20 mm
