ATX® Power Bar Chrome + 700 kg - Spring Steel

ATX® Power Bar - Chrome - MK + 700 kg - Spring Steel

The ATX® Power Bar Chrome is a precisely manufactured high-end barbell made from high-quality alloyed spring steel – with characteristic whip and a load capacity of over 700 kg. The optimal alloy of chrome, molybdenum, silicon, and manganese ensures extremely high tensile and compressive strength with simultaneous elasticity: the bar deforms up to its elastic limit and then returns to its original state without permanent deformation – the characteristic Whip effect, which is particularly crucial in weightlifting.

The high-quality chrome coating permanently protects the bar from corrosion and abrasion. Whether it's snatch and clean & jerk in weightlifting or squats, bench press, and deadlifts in powerlifting – the ATX® Power Bar Chrome withstands even the most extreme demands and meets the highest standards for precision, durability, and performance.

Product details of the barbell bar

• Material - Special steel according to EN 102775-5
• Tensile Strength: 206000 psi = 206 K (K/KSI = Kilopound per Square inch)
• abrasion-resistant hard chrome plating
• extra grippy precision knurling with 2-fold grip width marking
• Sleeves Ø 50 mm, rotatable – with maintenance-free precision brass bushings
• suitable for all commercially available weight plates with bore Ø 50/51 mm
• End caps encapsulated with high quality, with ATX^® color code logo: Red

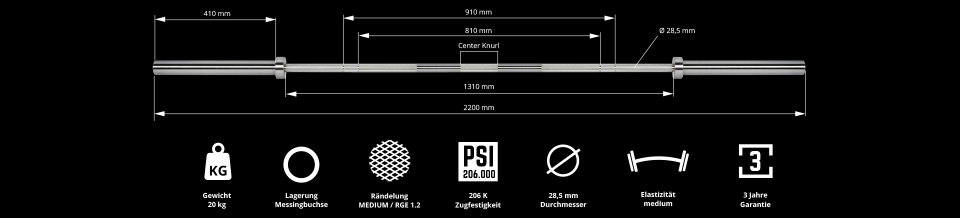

• Overall length: 2200 mm
• Inner grip dimension: 1310 mm
• Grip diameter: 28.5 mm
• Weight: 20 kg
• Max. load capacity: 700 kg

The stated maximum load capacity of the barbell is only given under optimal conditions! For exercises with a wide grip, such as bench press, the theoretically highest load on the barbell is possible. With point-central load transfer, such as squats, the maximum load capacity decreases! Damage to the barbells is possible if the load limits and application areas specified in the tables are not adhered to. Exchange and warranty services are excluded in this case!

Maximum permissible weight load of the barbell

• Wide grip width: 700 KG - Bench Press
• Medium grip width: 600 KG - Deadlifts
• Medium/narrow grip width: 500 KG - Squats

Area of application

• Fitness: YES
• Strength training: YES
• Weightlifting/ Powerlifting: YES

ATX® offers first-class, tested, and proven equipment for professional use. ATX® barbell bars undergo the following material tests in an independent German testing laboratory:

• Tensile test according to DIN EN ISO 6892-1
  Tensile test acc. To DIN EN ISO 6892-1
• Rockwell hardness according to DIN EN ISO 6508-1
  Hardness Rockwell acc. DIN EN ISO 6508-1The barbell has the following values:
• Tensile Strength: 206000 psi = 206 K (K/KSI = Kilopound per Square inch) = / corresponds to 1420 N/mm2
• HRC / Surface hardness: 44.0

Tip

For sufficient safety during training, we recommend our 50 mm collars.

Scope of delivery

1 x ATX® Power Bar Chrome + 700 kg - Spring Steel

Article number: MS-LH-50-ATX-CL
