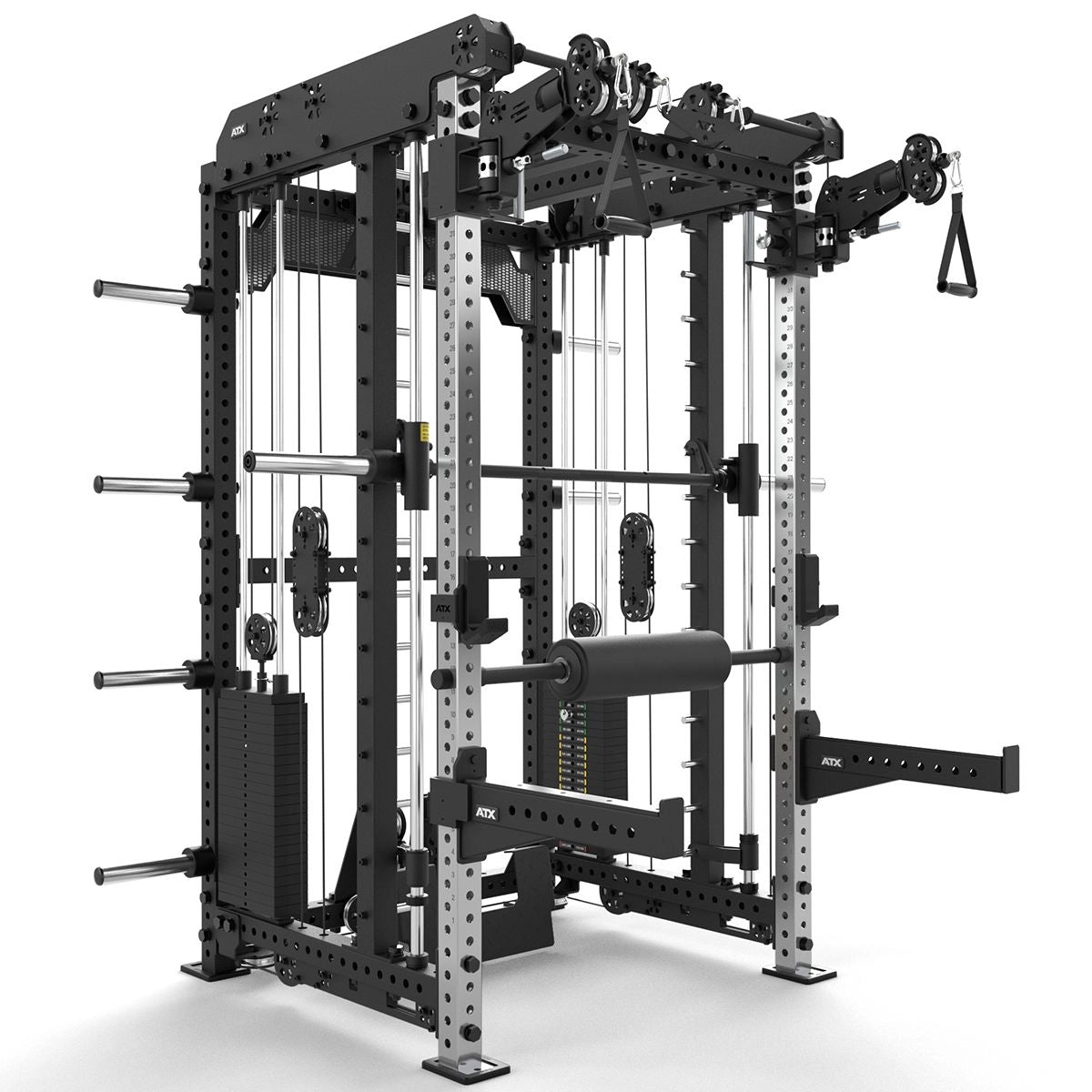

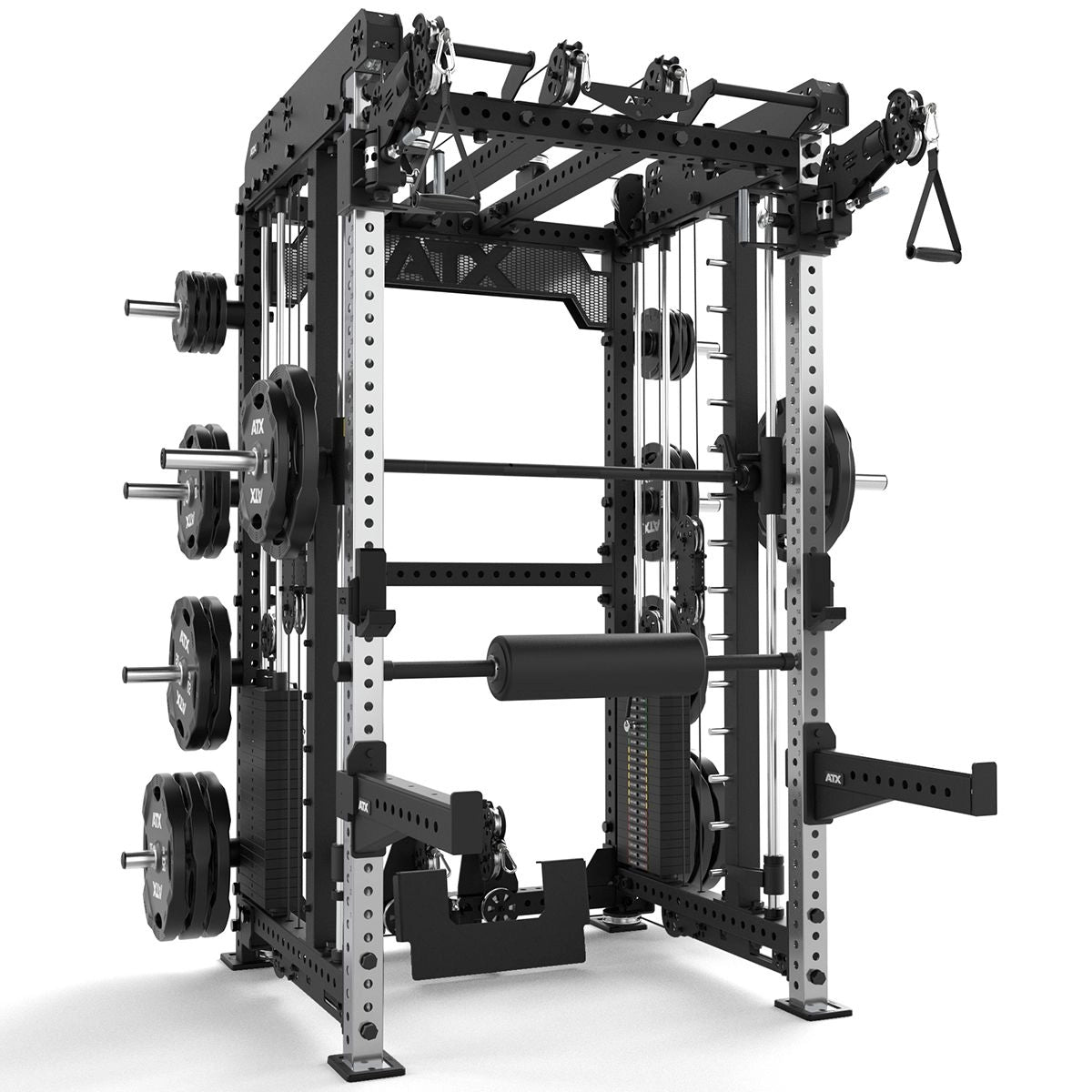

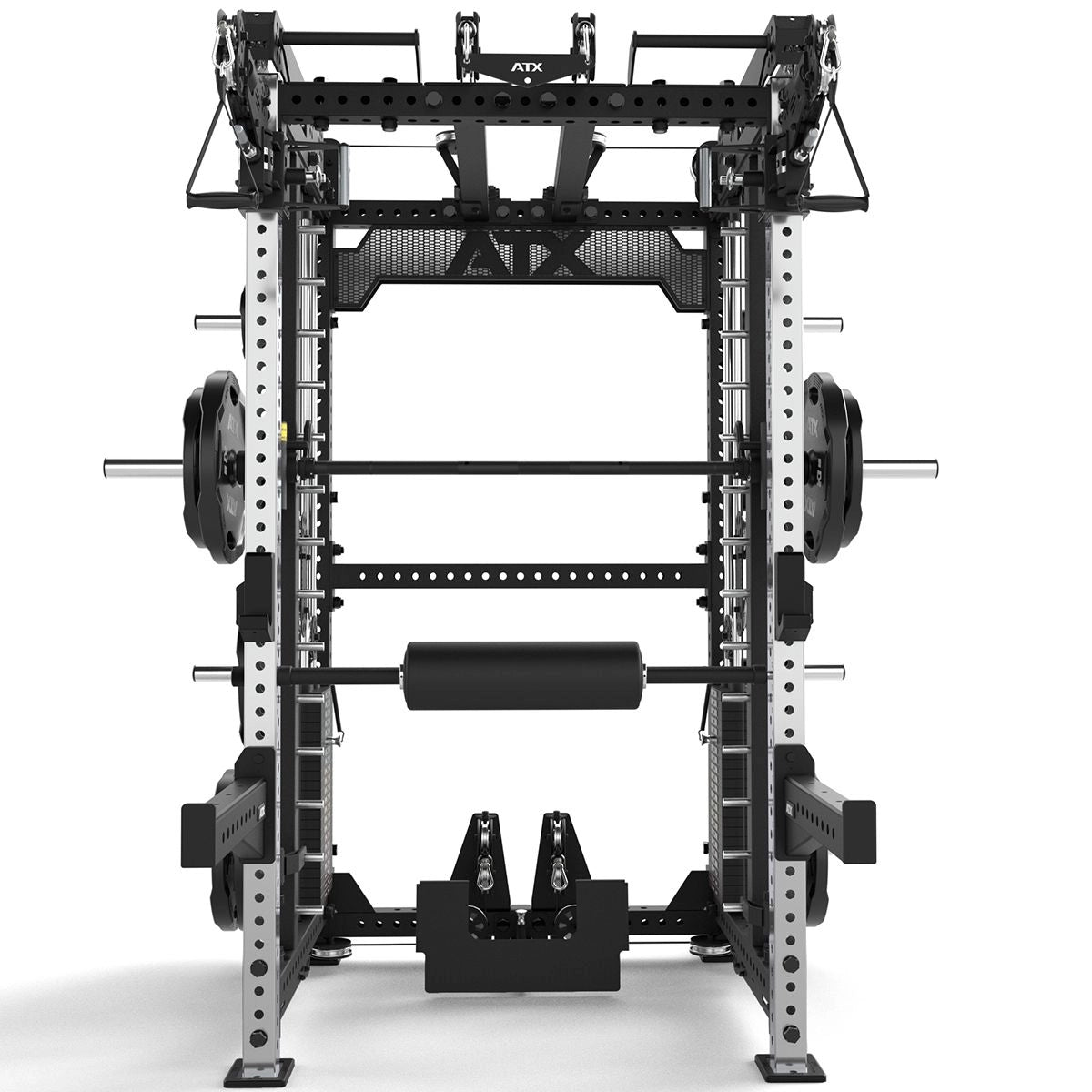

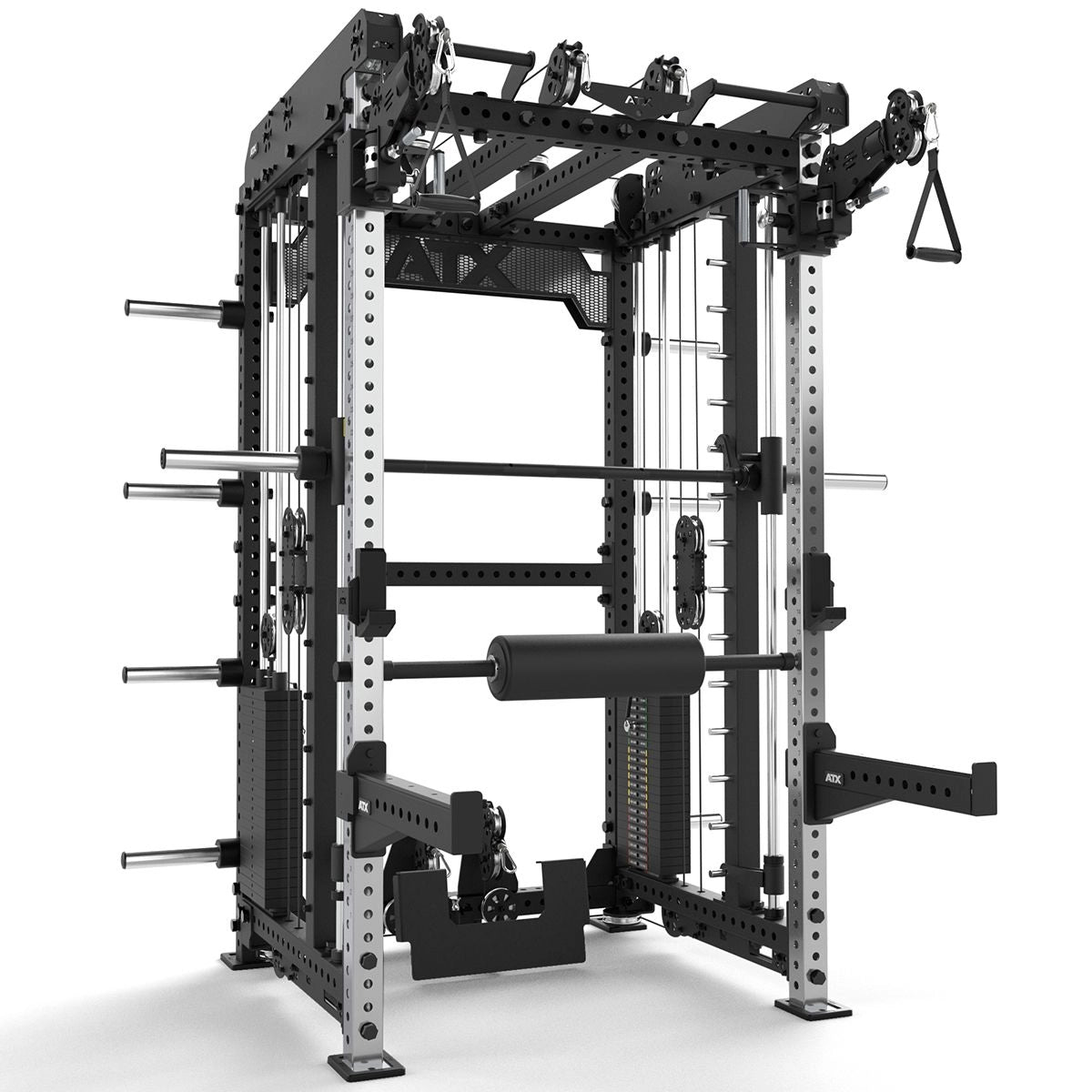

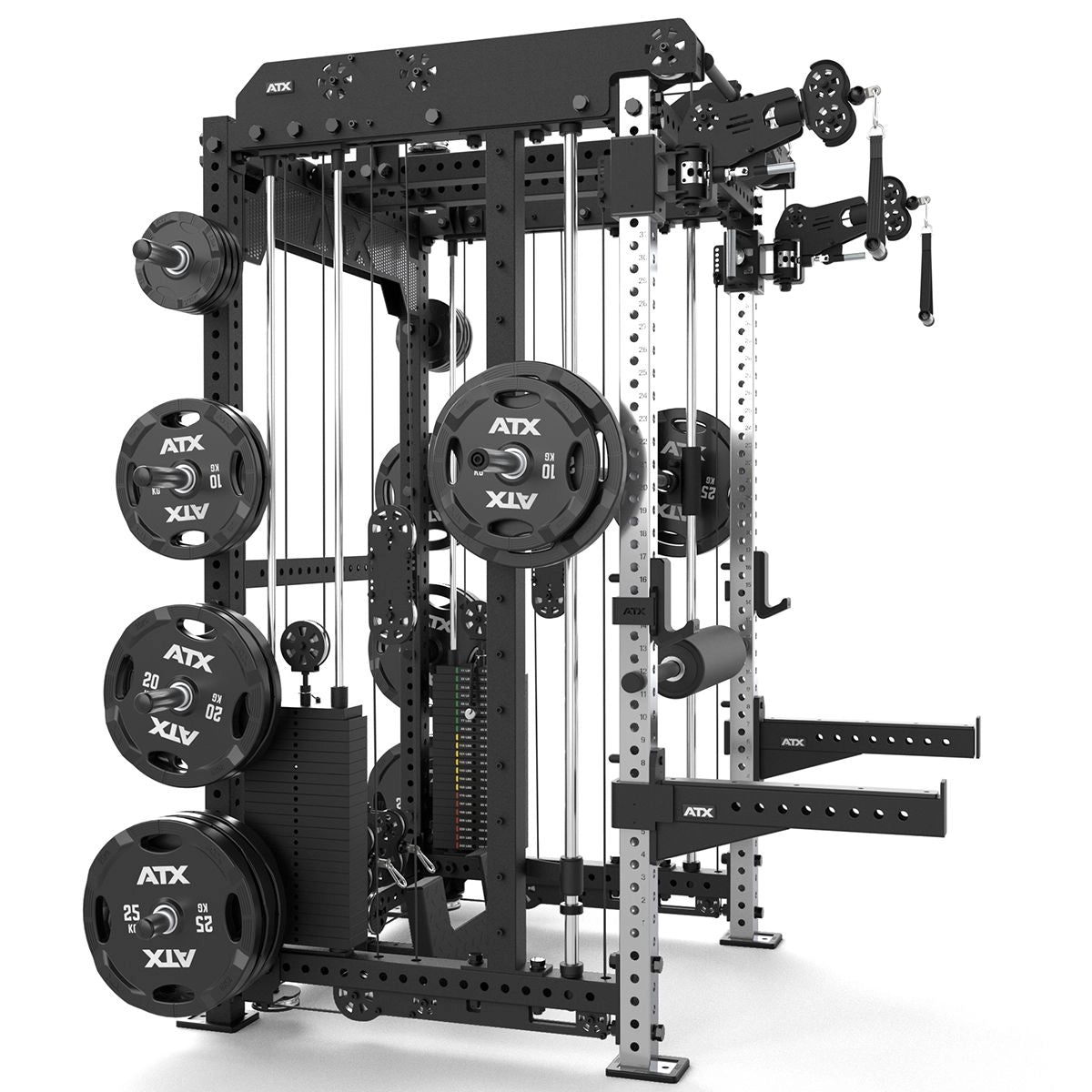

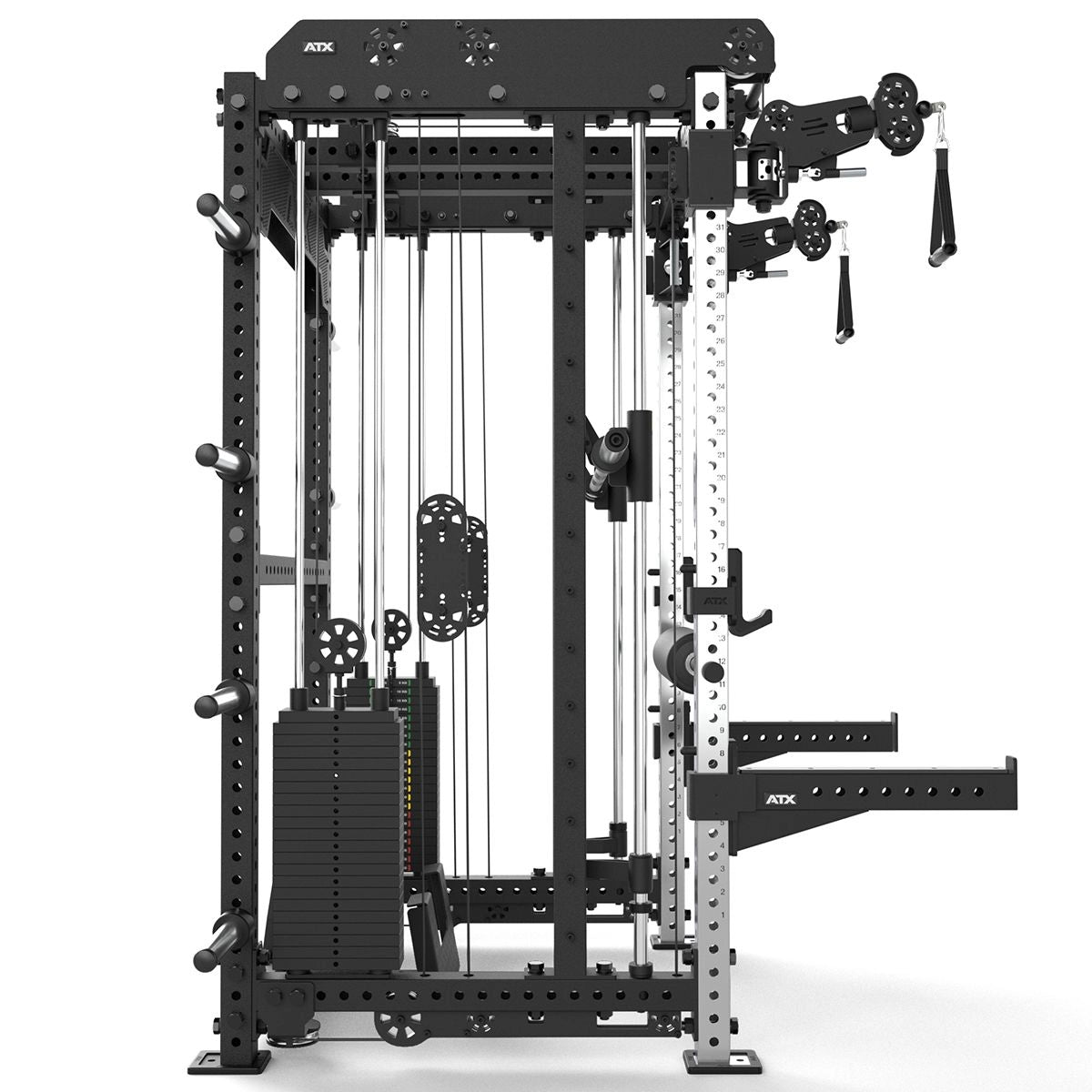

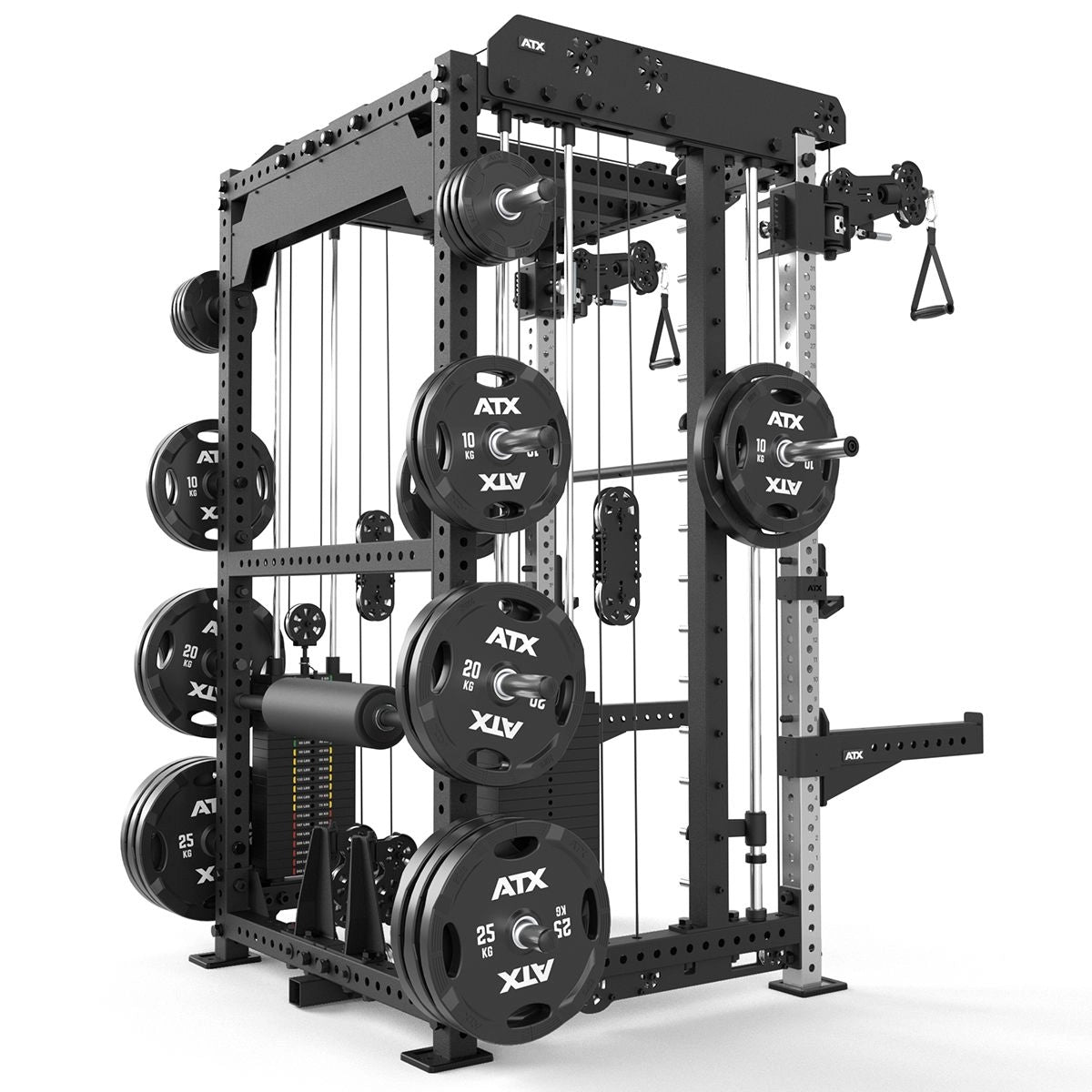

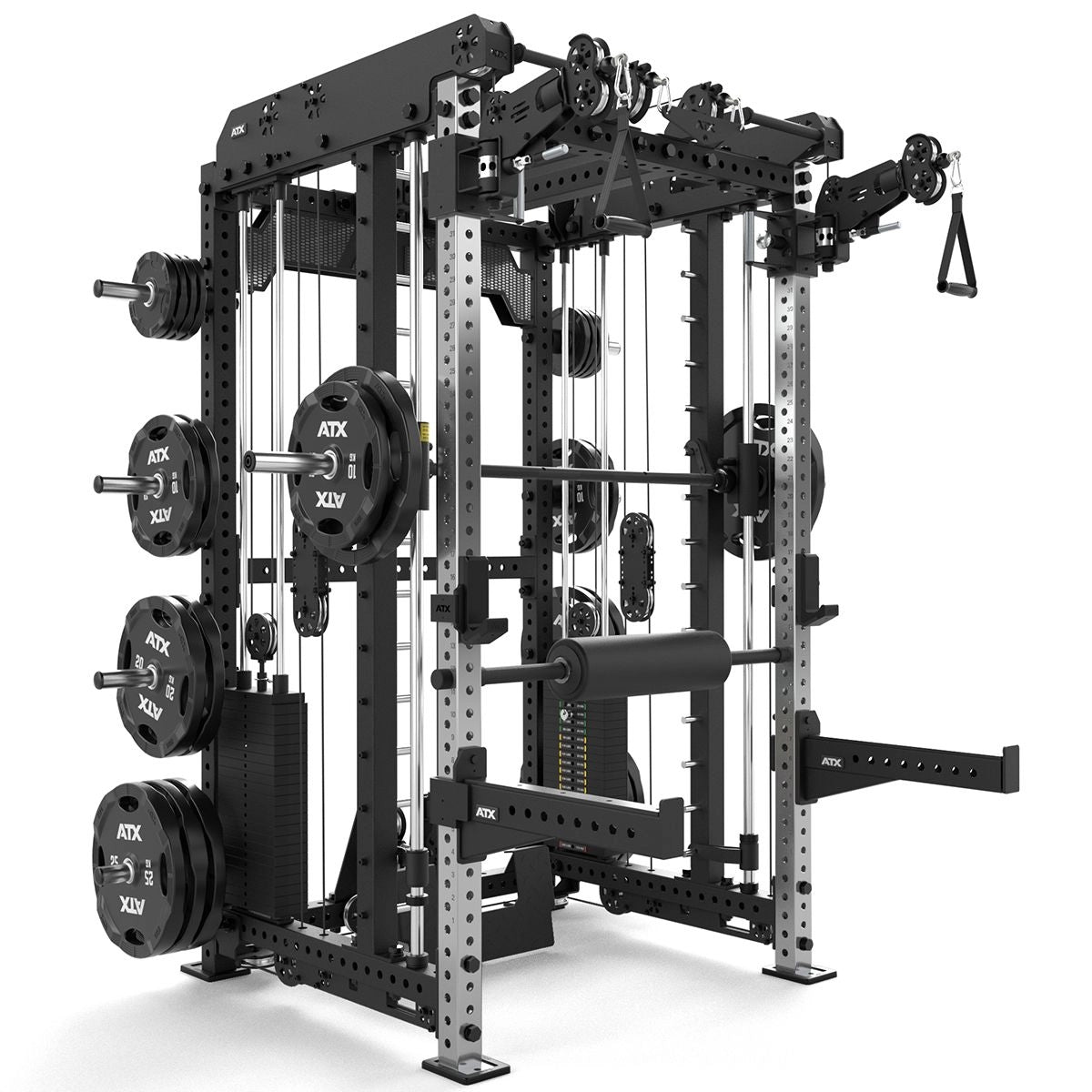

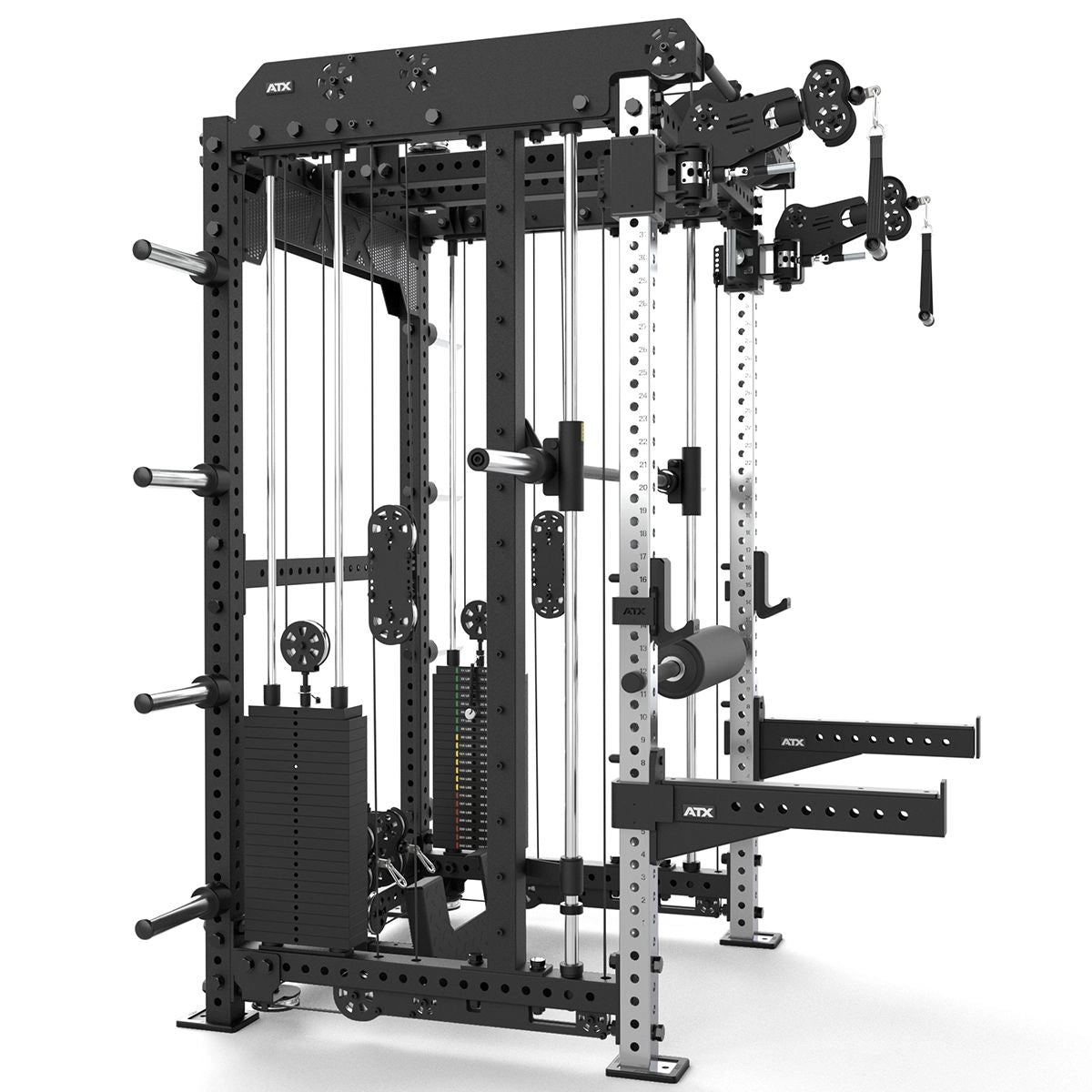

ATX® Multi Pull Smith Rack

ATX® Multi Pull Smith Rack - multi-gym

The ATX® Multi Pull Smith Rack is an incredible power station! Its heavy-duty half rack, professional multi-press, heavy-duty lat pulldown machine, and numerous accessories enable an extremely comprehensive and professional range of exercises.

A complete station of superlatives!

• Half Rack with J-Hooks & Spotters
• With linear multi-press

• Lat and rowing station with foot and leg support
• including 2 x 110 kg stackable weights
• With 6 different pull points
• Swiveling roller boom arms
• With integrated pull-up bar
• With integrated deadlift front shelf
• Includes 8 weight plate holders

Six pulley points with swivel arms enable a variety of pulling exercises. All six pulley points are connected to the two 110 kg weight stacks with a 2:1 gear ratio. The two centrally located pulleys can be used alternately or synchronously via the included cable connector. This allows for a wide range of single-arm, alternating, or synchronous pulling exercises. The coupling enables professional execution of heavy pulling exercises such as lat pulldowns or seated rows. The included leg support and telescopic footrest ensure secure positioning. The swivel arms attached to the front upright tubes are adjustable in both height and width, allowing for narrow and extra-wide pulley variations (cable crossover).

All relevant barbell exercises can be performed on the free weight rack or the linear-guided Smith machine . J-hooks and spotter arms are included. An additional deadlift barbell rack and a pull-up bar are also integrated.

The massive, stable construction is absolutely torsion-free, can withstand heavy loads and is of first-class workmanship; the functionality is outstanding, adjustments and handling are simple and intuitive.

Heavy, stable construction

• Powerful design
• Made from 70 x 70 x 3 mm thick square steel tubing
• Absolutely stable and torsion-free construction
• Stainless steel front tubes with laser-cut system hole pattern
• High weight - 645 kg, extremely stable - device does not need to be anchored to the ground.
• Heavy-duty - frame load capacity over 1,000 kg
• With rubberized feet - floor-friendly and slip-resistant
• Abrasion-resistant powder coating
• ATX logo plate in honeycomb design with stainless steel back panel
• With studio approval

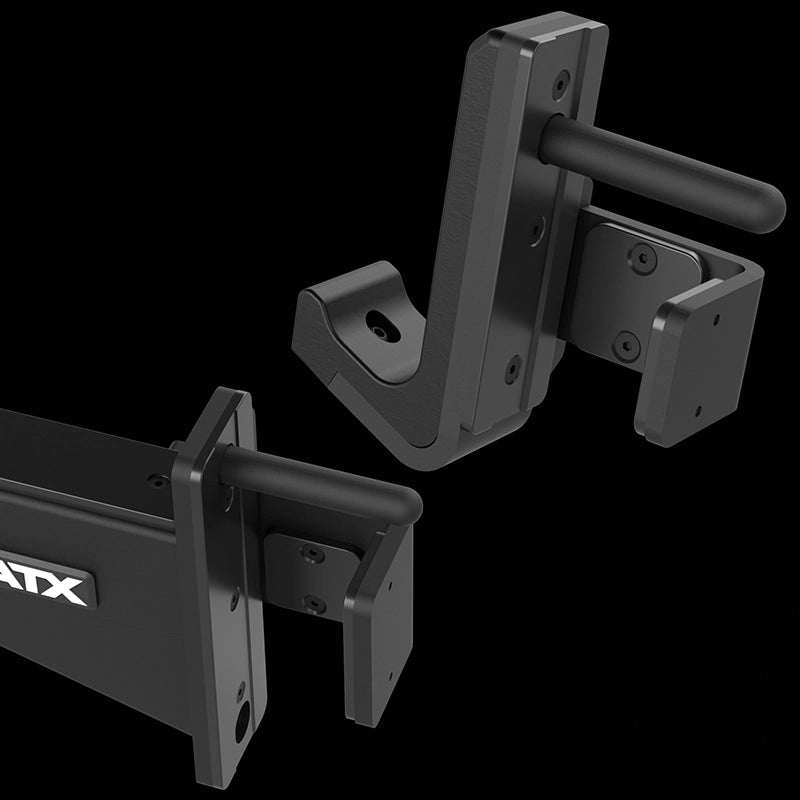

including J-cups

• made from 10 mm thick strip steel
• with thick all-around protection / rubber protectors - to protect the barbell and to minimize noise
• With internal plastic protectors - to protect the frame / paintwork
• Heavy-duty - up to 500 kg

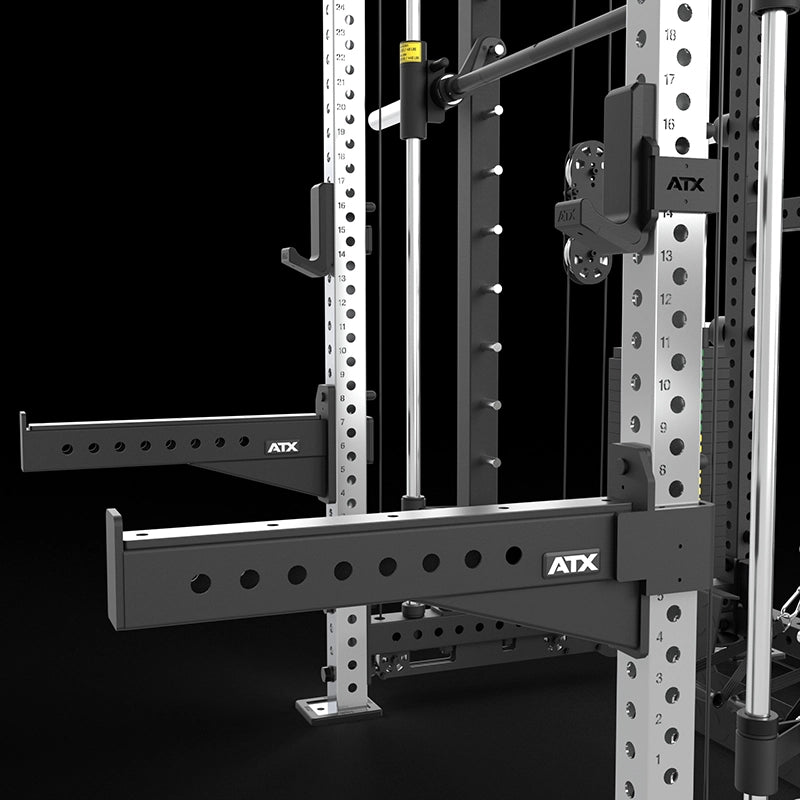

Includes spotter arms/emergency rests

• With long reach - 625 mm
• With thick protective padding - to protect the barbell and minimize noise.
• Super stable U-shaped socket made of 8 mm thick strip steel
• U-shaped socket with internal plastic protectors - to protect the frame / paintwork
• Heavy-duty - up to 400 kg

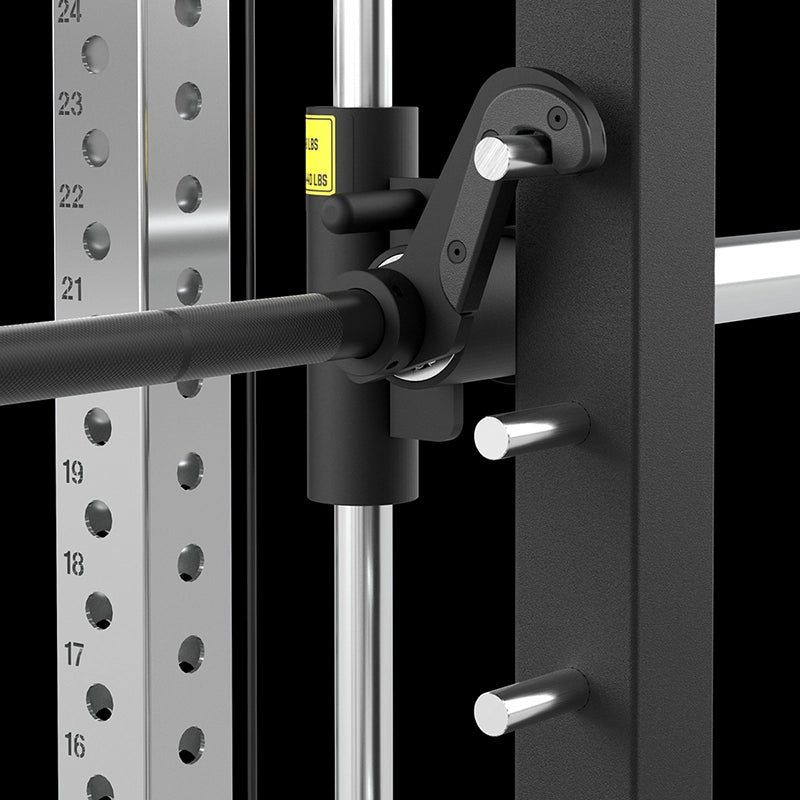

With professional multi-press

• silky-smooth running characteristics - thanks to 4 linear ball bearings
• Minimal bending/twisting thanks to hard-chromed steel shafts Ø 30 mm
• Solid steel barbell, Ø 30 mm, knurled and marked for a secure grip, black chrome plated with individually adjustable safety locks with spring cushioning
• Weight plate holders Ø 50 mm x 300 mm
• heavy load capacity - up to 200 kg
• Guide shafts and weight plate holders in hard chrome plating
• Barbell bar in black chrome - knurled for a secure grip, with grip width markings

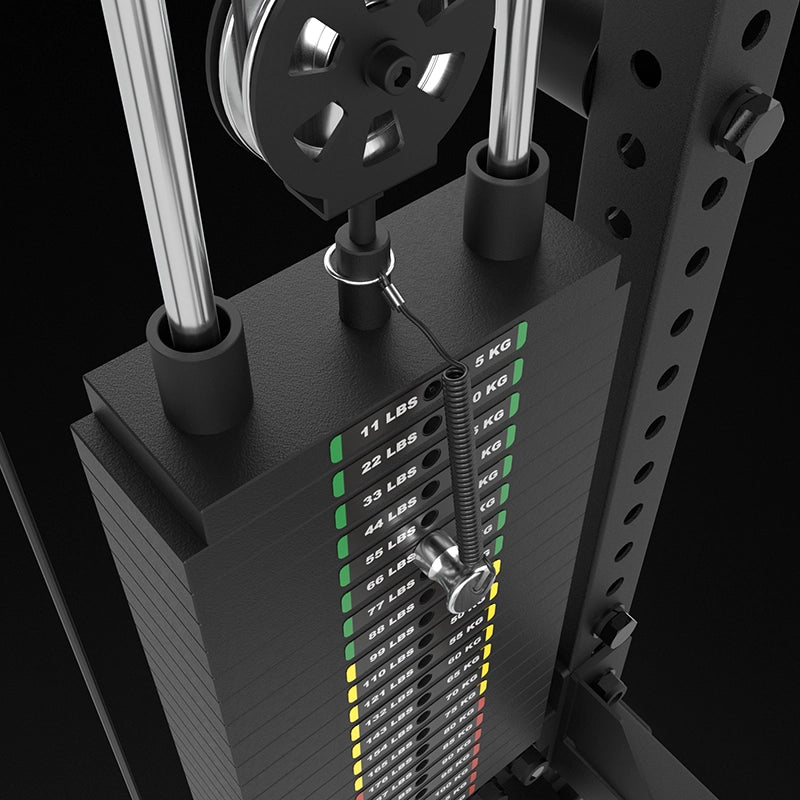

With 2 x 110 kg stackable weights

• First-class running characteristics

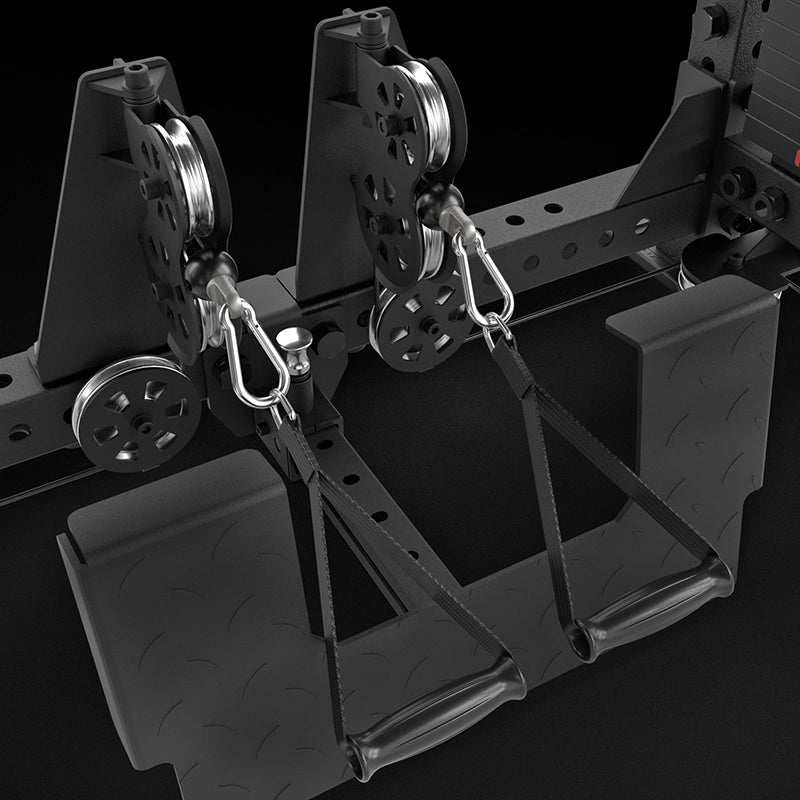

• Ball-bearing aluminum rope pulleys
• Weight increments of 22 x 5 kg
• Translation 2:1
• Non-stretch steel cable with protective sheathing
• Six different train starting points
  2 x 2 alternating pull points top and bottom + 2 x lateral duplex boom arms

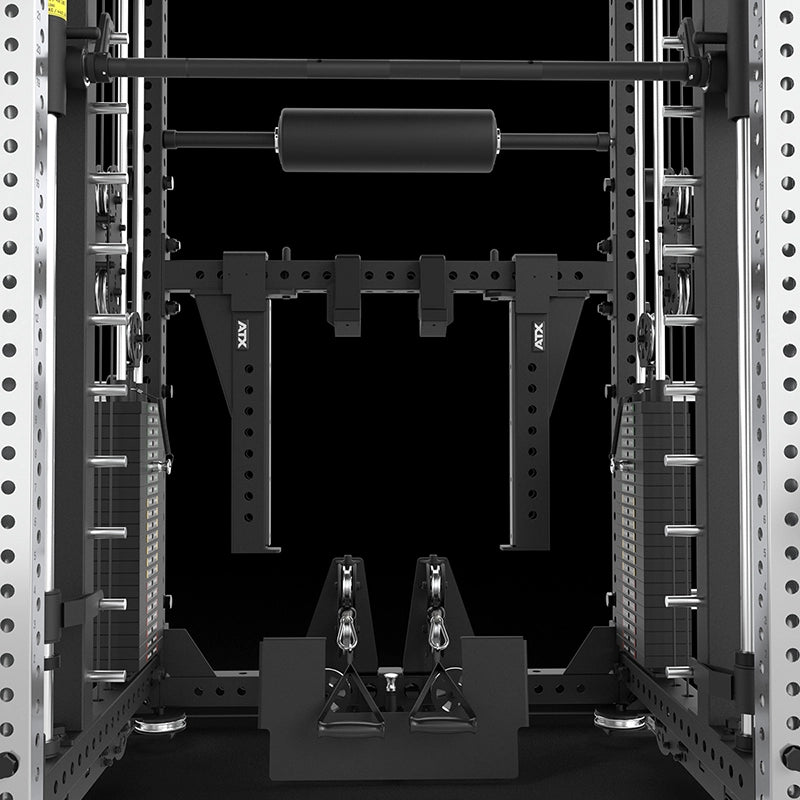

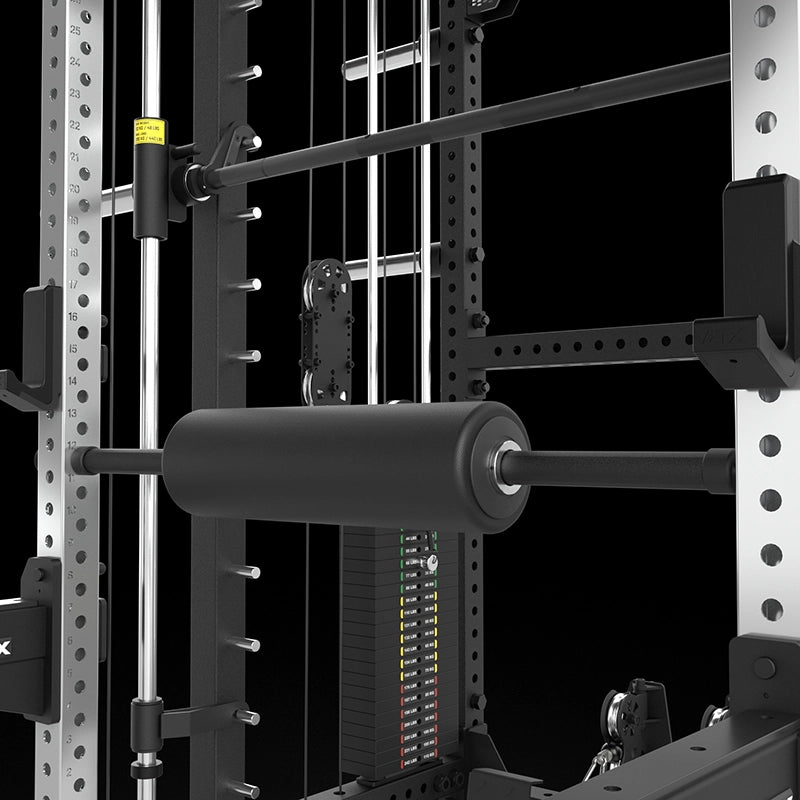

• Includes leg support padding: removable, easily and quickly adjustable in height for secure fixation during lat pulldowns.
• Includes telescopic footrest: for secure fixation and maximum range of motion when rowing while seated.
• Including weight plate storage: 8 weight plate holders 50 mm - chrome-plated
• Includes 2 one-handed handles + carabiner hook

Functional and well-designed down to the last detail

• With all-around system perforation in a fine 50 mm hole pattern
  for attaching additional options and accessories
• Front tubes in high-quality stainless steel
• With laser-engraved digit scaling for precise and fast reading
  Reproducing the setting heights of J-hooks, roller arms and spotters
• With additional deadlift front support with barbell protection pad
  + Optimal loading height for internationally standardized weight plates

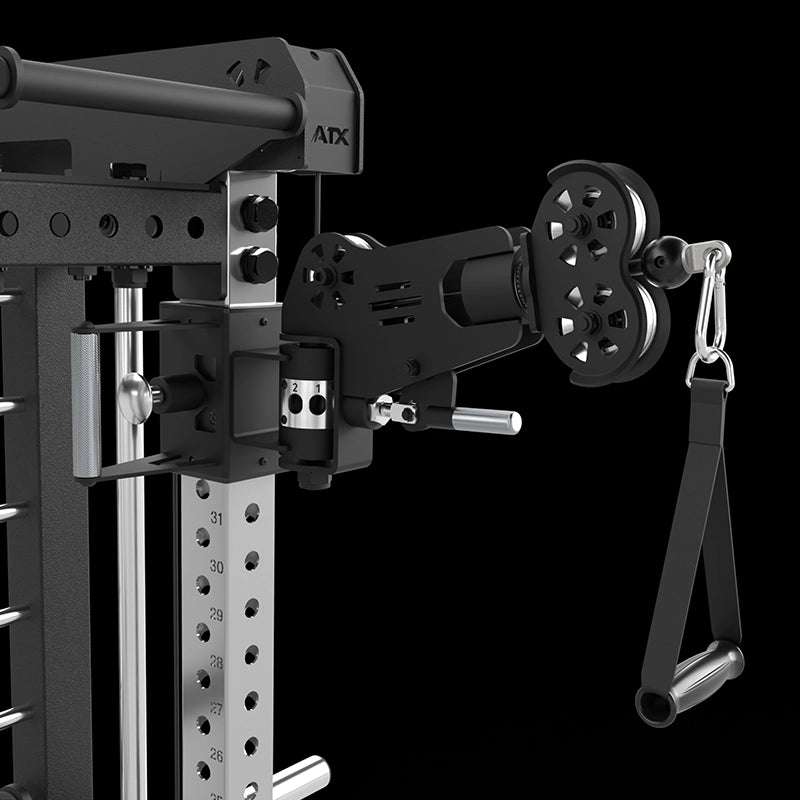

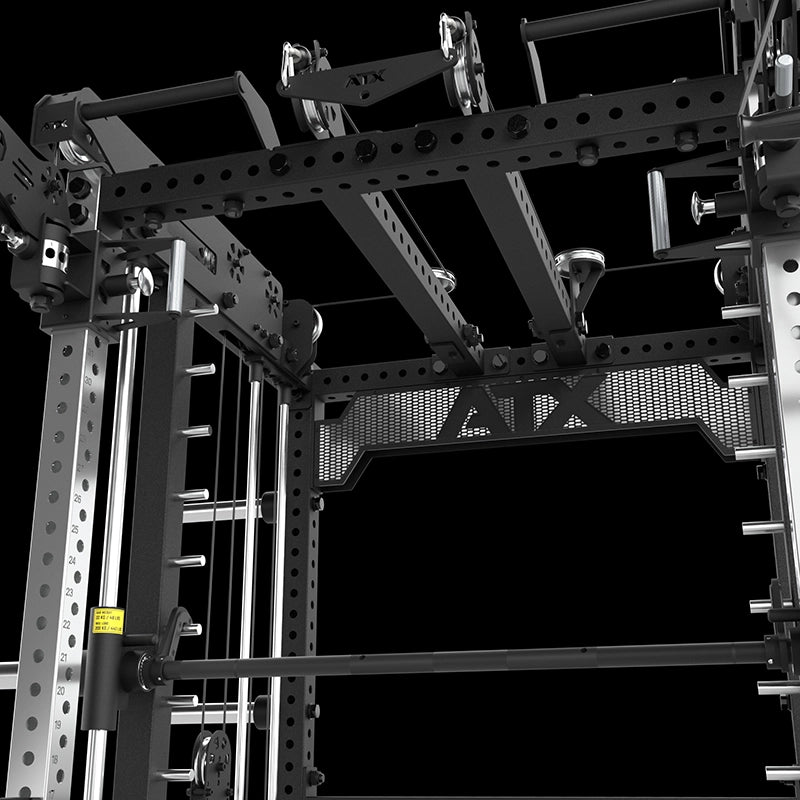

• With swiveling roller boom arms
  + Individually adjustable in height and reach
  + With adjustable scale in stainless steel
  + Swivel range 170°
  + Allows for narrow and extra-wide cable crossover settings

Modularly expandable

• The device is expandable with further premium ^ATX® options.

A rack in proven ^ATX® quality

• German Engineering
• First-class workmanship and function
• Durable and retains its value
• With studio approval

Scope of delivery

1 x ATX ^® Multi Pull Smith Half Rack - complete station
Includes 2 one-handed handles and carabiner hooks

Article number: MS-ATX-MPHR-780

Notice

Delivered disassembled, including assembly instructions - easy assembly.
Delivery will be arranged by prior telephone notification.
