ATX® Fold Back Rack 750

ATX® Fold Back Rack 750 - Wall Rack - Foldable

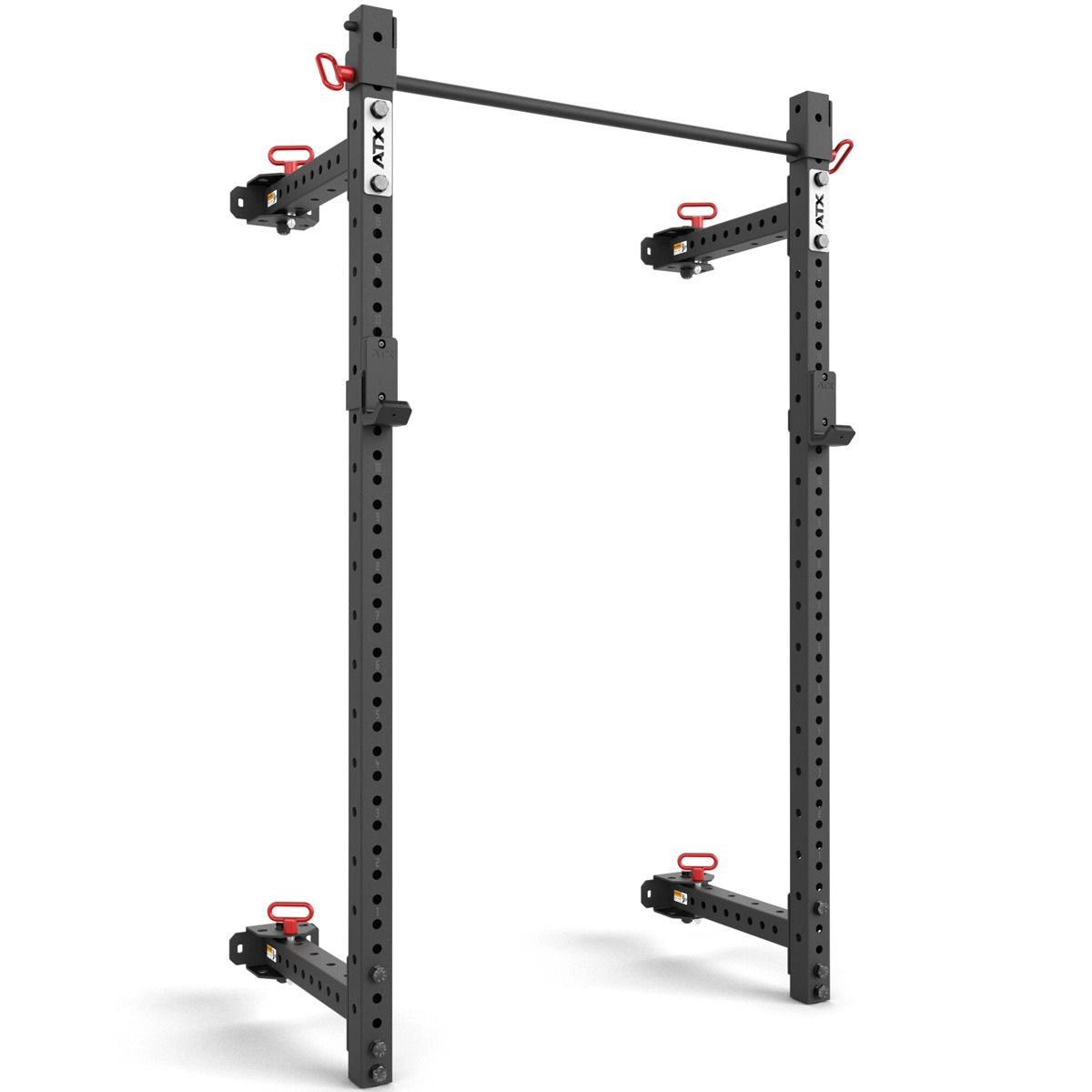

The ATX® Fold Back Rack 750 is a functional and space-saving rack with an innovative folding mechanism. Mounted on the wall, it can be easily folded in and out, while remaining extremely robust. This allows effective strength training with basic exercises even in the smallest spaces, without compromising safety, training comfort, or the training experience.

• Perfect rack solution for temporary training areas and/or small spaces
• Optimal handling thanks to innovative and smooth folding with rollers

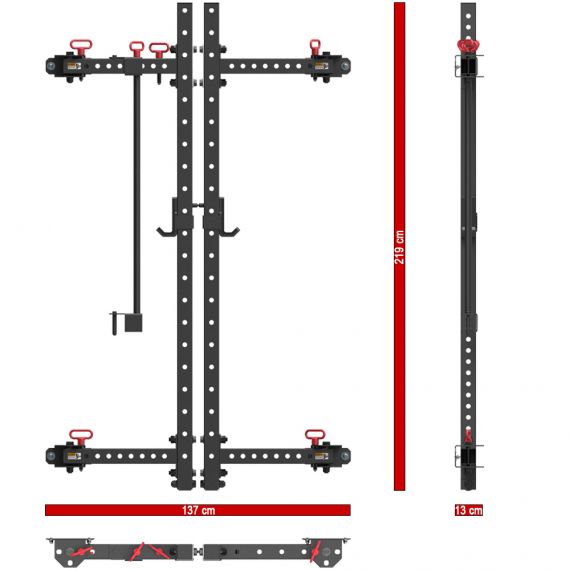

• Extremely space-saving when folded (only 13 cm deep)
• Offers optimal training conditions for basic exercises (squats, bench press, etc.)
• Includes a heavy-duty pull-up bar (up to 200 kg)
• Includes heavy-duty J-Hooks
• Withstands even maximum training loads (up to 500 kg) - certified studio quality

Product Details Wall Rack

• Extreme load capacity up to 500 kg

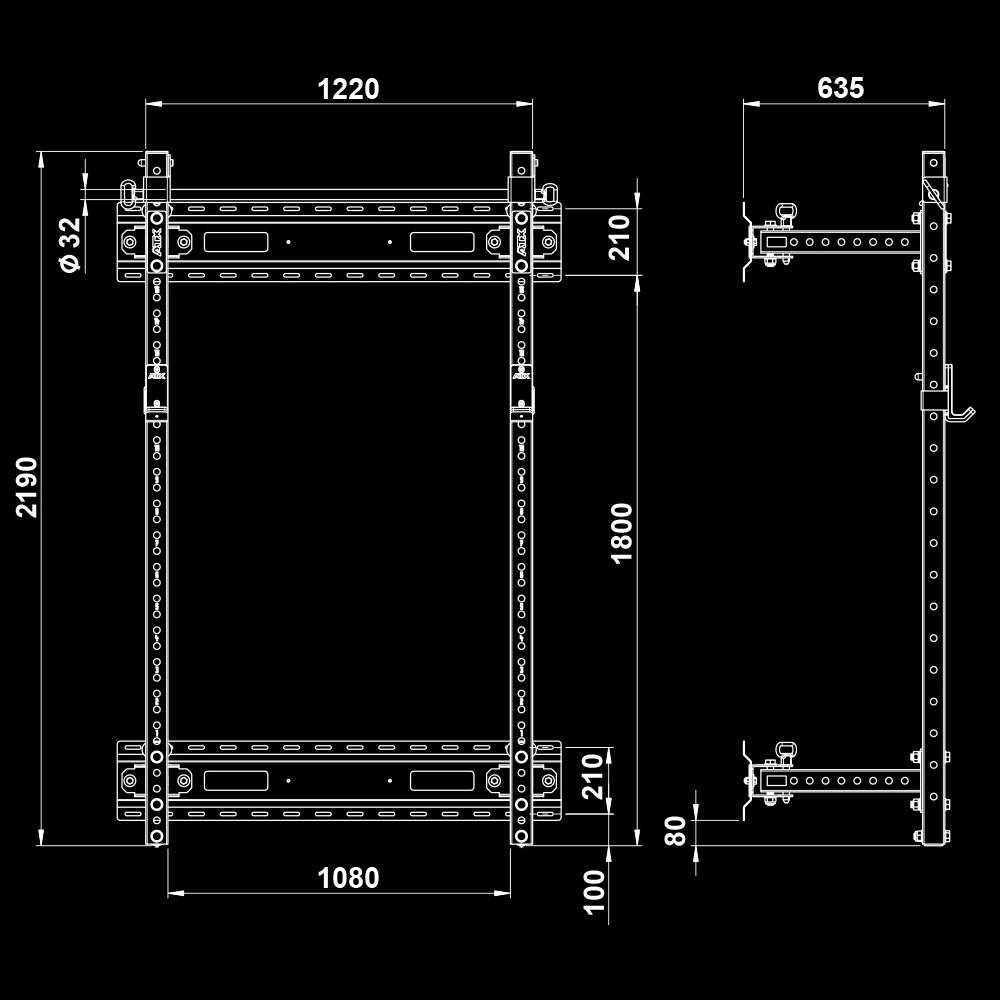

• Solid construction made of 70 x 70 x 3 mm profile steel tube
• Heavy-duty pull-up bar (Ø 32 x 3 mm)  up to 200 kg

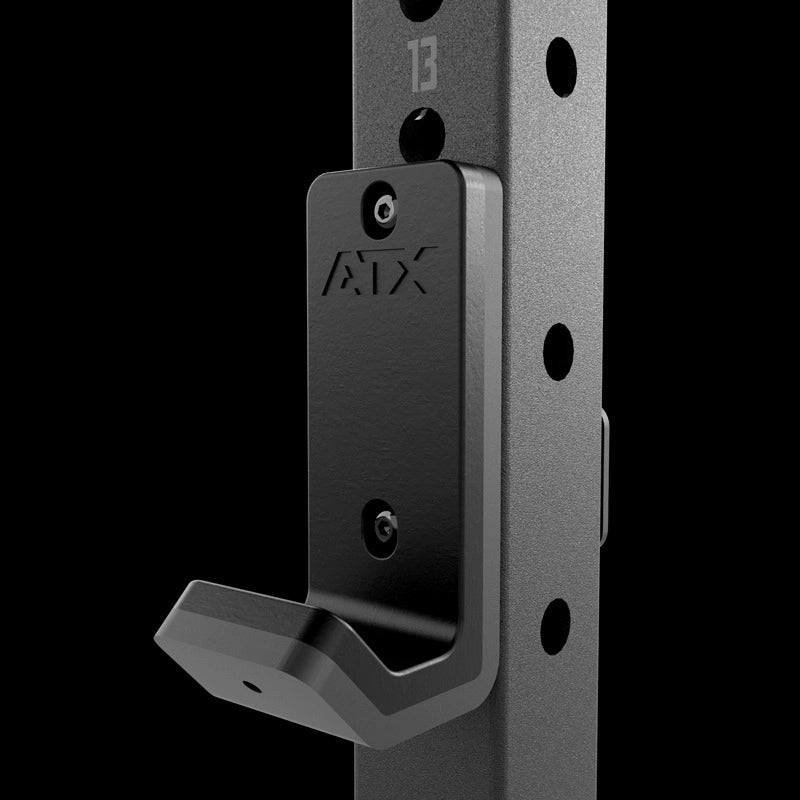

• Solid J-Hooks made of 10 mm thick steel plate plus 10 mm thick protective rubber coating
• Extremely stable thanks to uncomplicated wall mounting

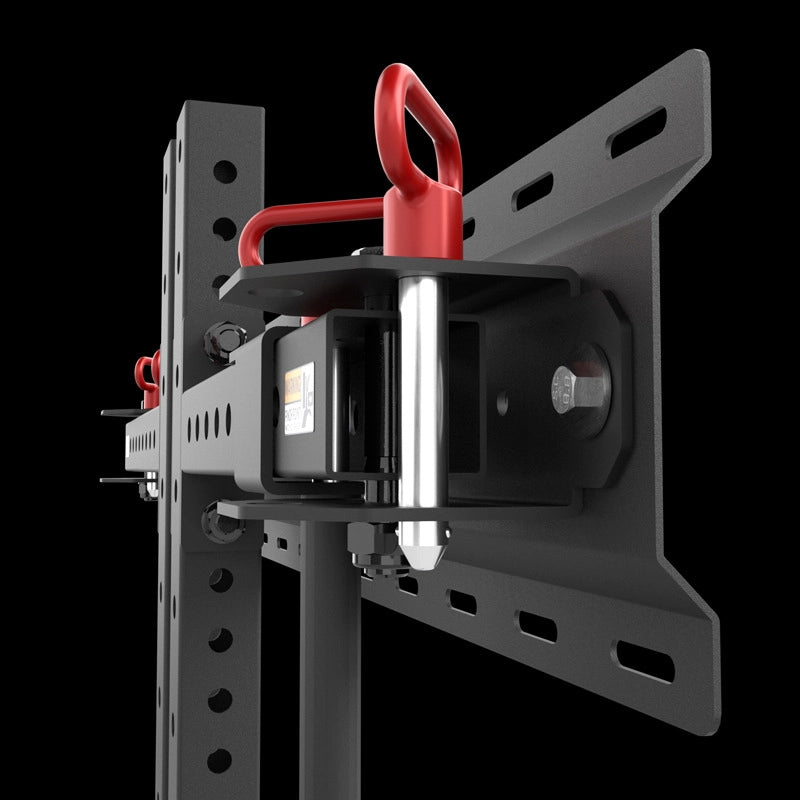

• Intelligently designed wall mounts with height compensation, to compensate for inaccuracies between the wall and the floor

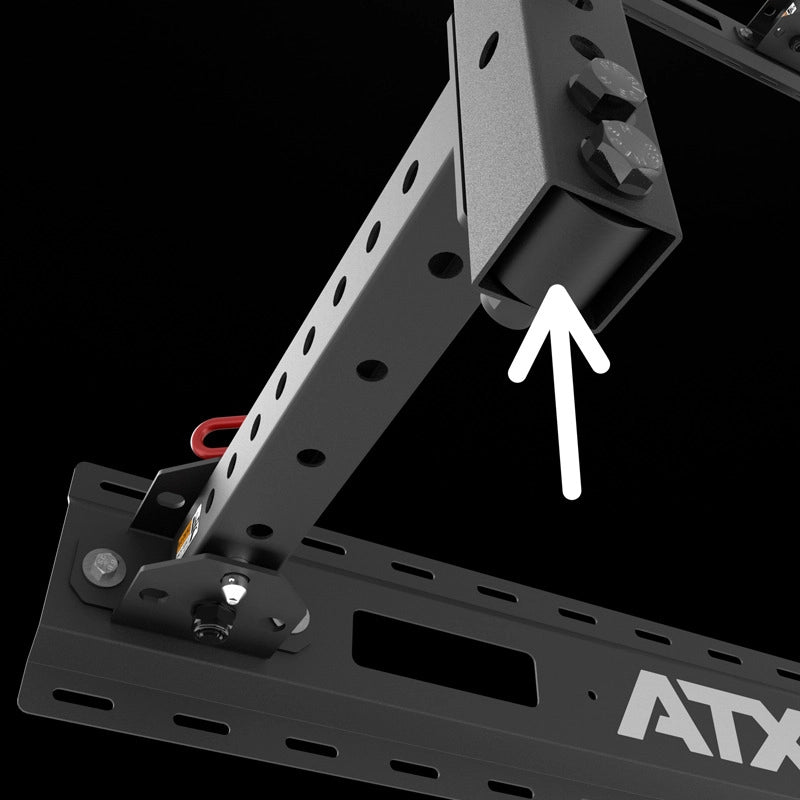

• With heavy-duty rollers in the support post - ensures smooth folding in/out of the frame without leaving scuff marks on the floor.

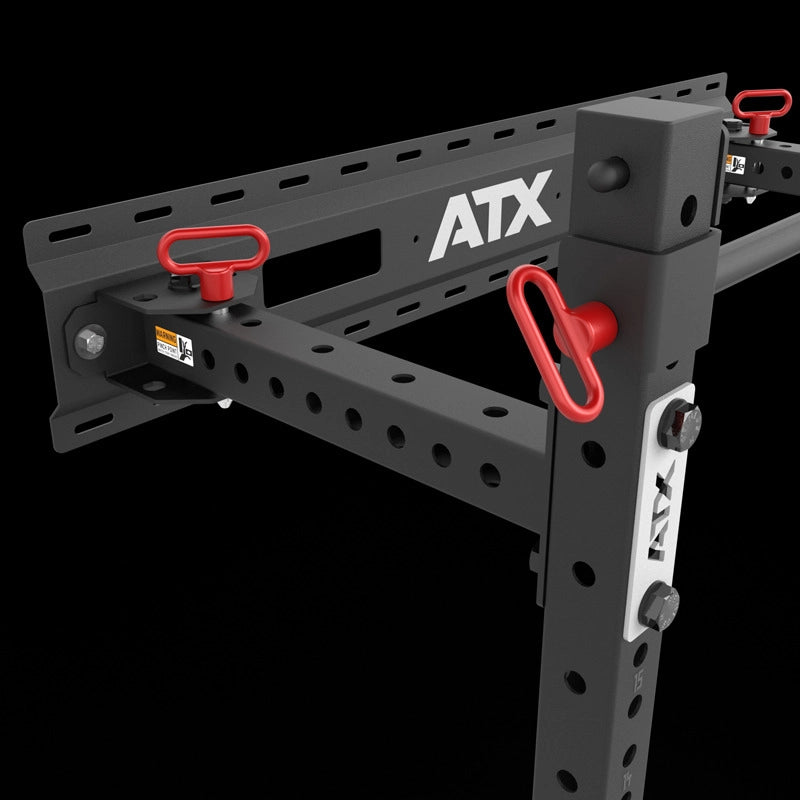

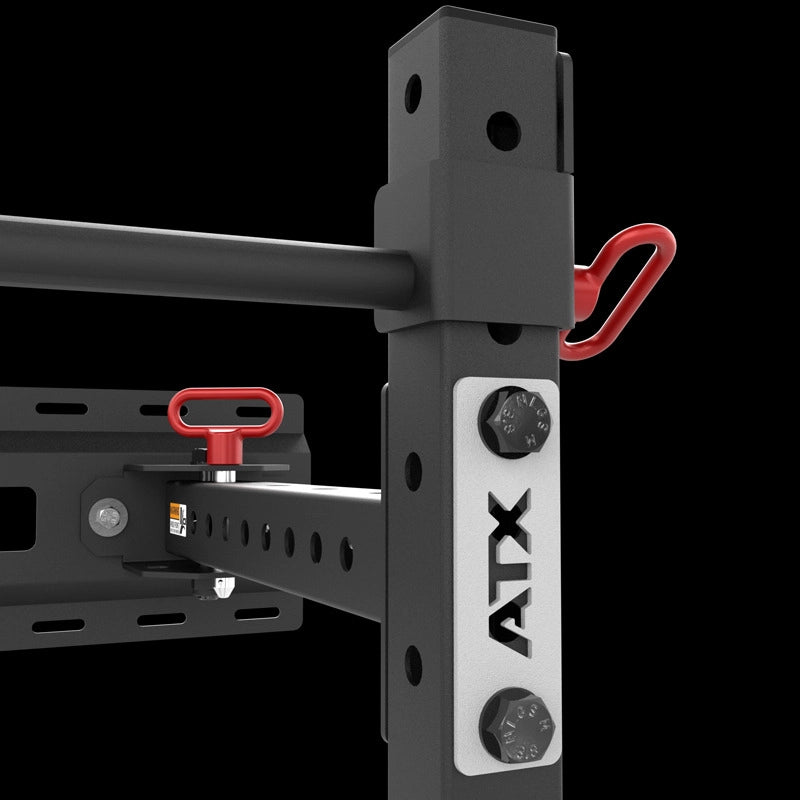

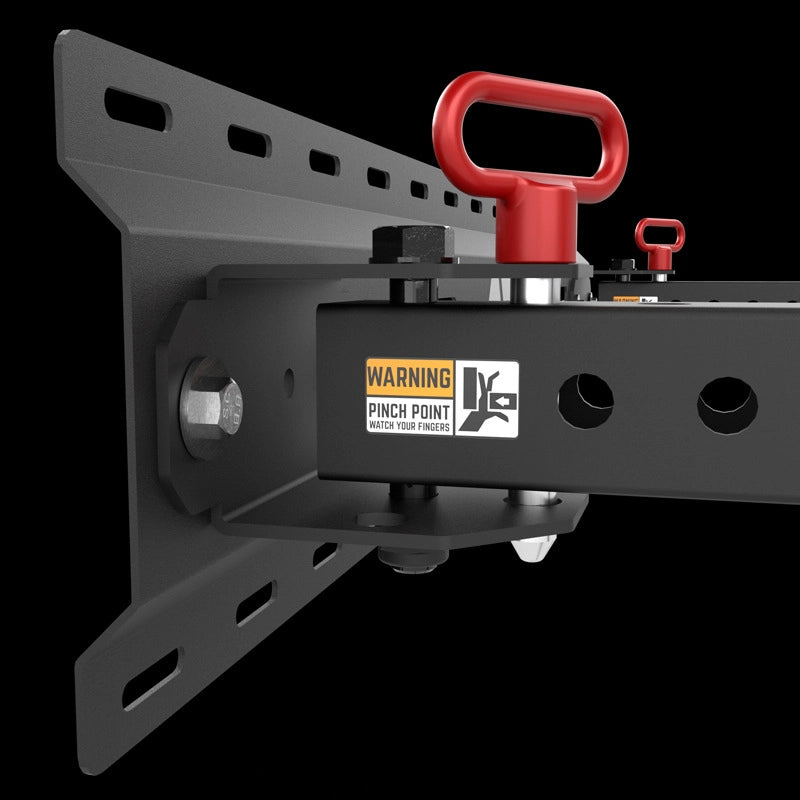

• Very robust locking pins & black galvanized screws with 20 mm Ø
• High-quality engraved numerical code scaling, which allows previously set training settings to be quickly & easily repeated
• Particularly versatile expandability with optional accessories (e.g. spotter arms, dip bars, landmine, etc.)
• Designed in Germany.


Description / Concept

If you previously had to do without the advantages of a rack because you had neither your own training room nor the necessary space, then the ATX® Fold Back Rack 750 is the perfect solution in sight. This functional and extremely space-saving rack is a true master of transformation.

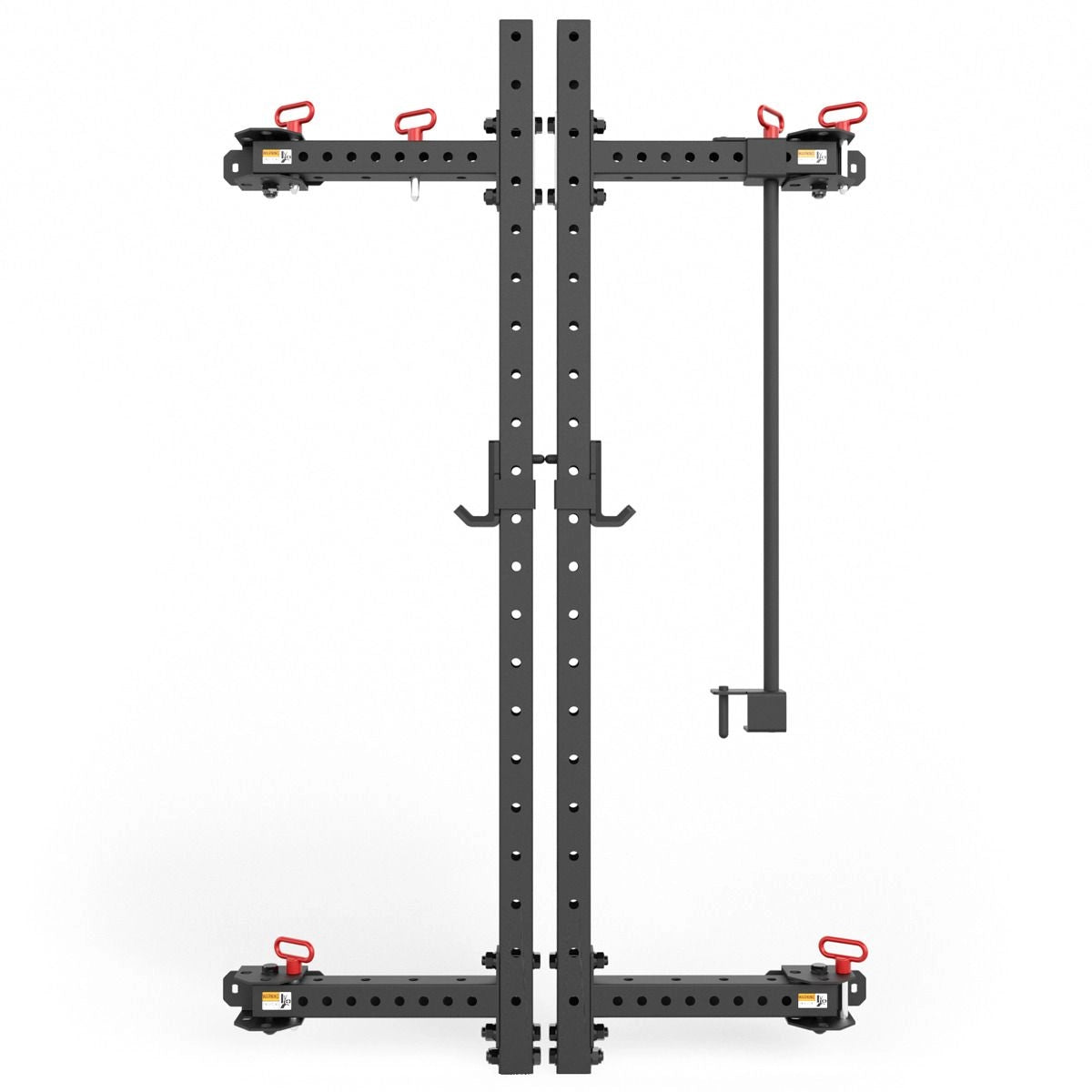

Thanks to innovative folding function, the wall-mounted ATX® Fold Back Rack 750 can be folded in and out particularly quickly & easily. The extremely smooth-running, heavy-duty and barely noticeable polyamide rollers at the lower end of the rack contribute significantly to the uncomplicated and comfortable handling.

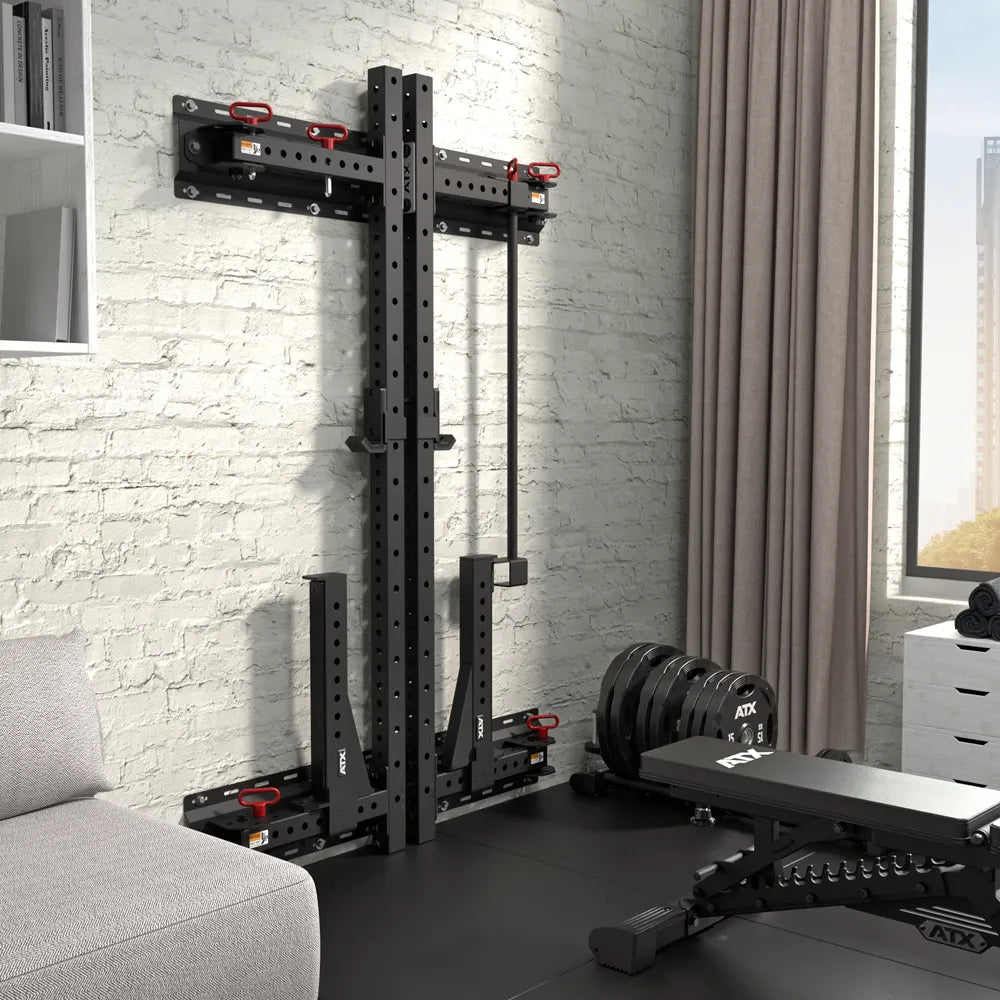

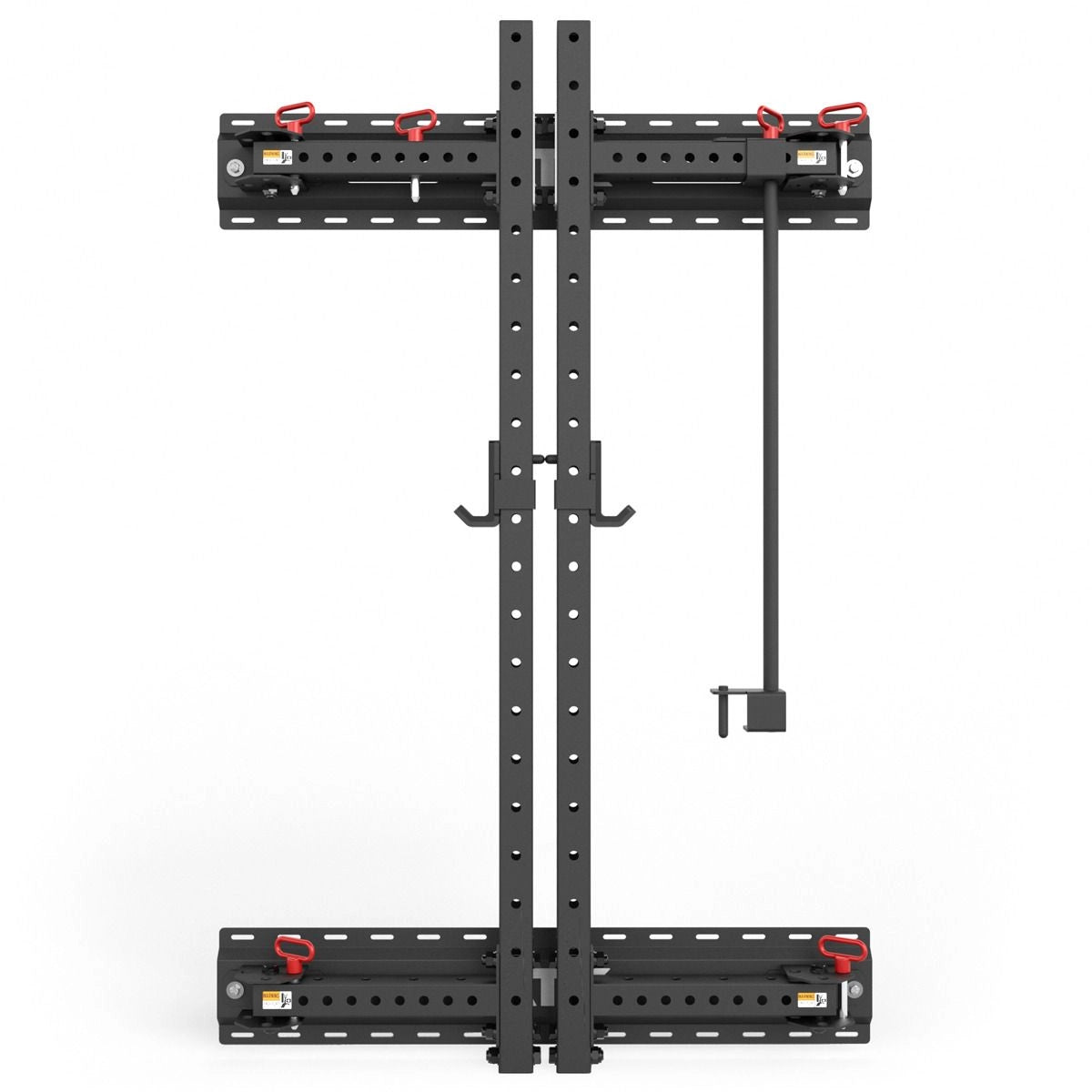

If the Half Rack is no longer needed after training, the ATX® Fold Back Rack 750 disappears from the room with just a few simple steps and only 13 cm depth (!) when folded almost completely.

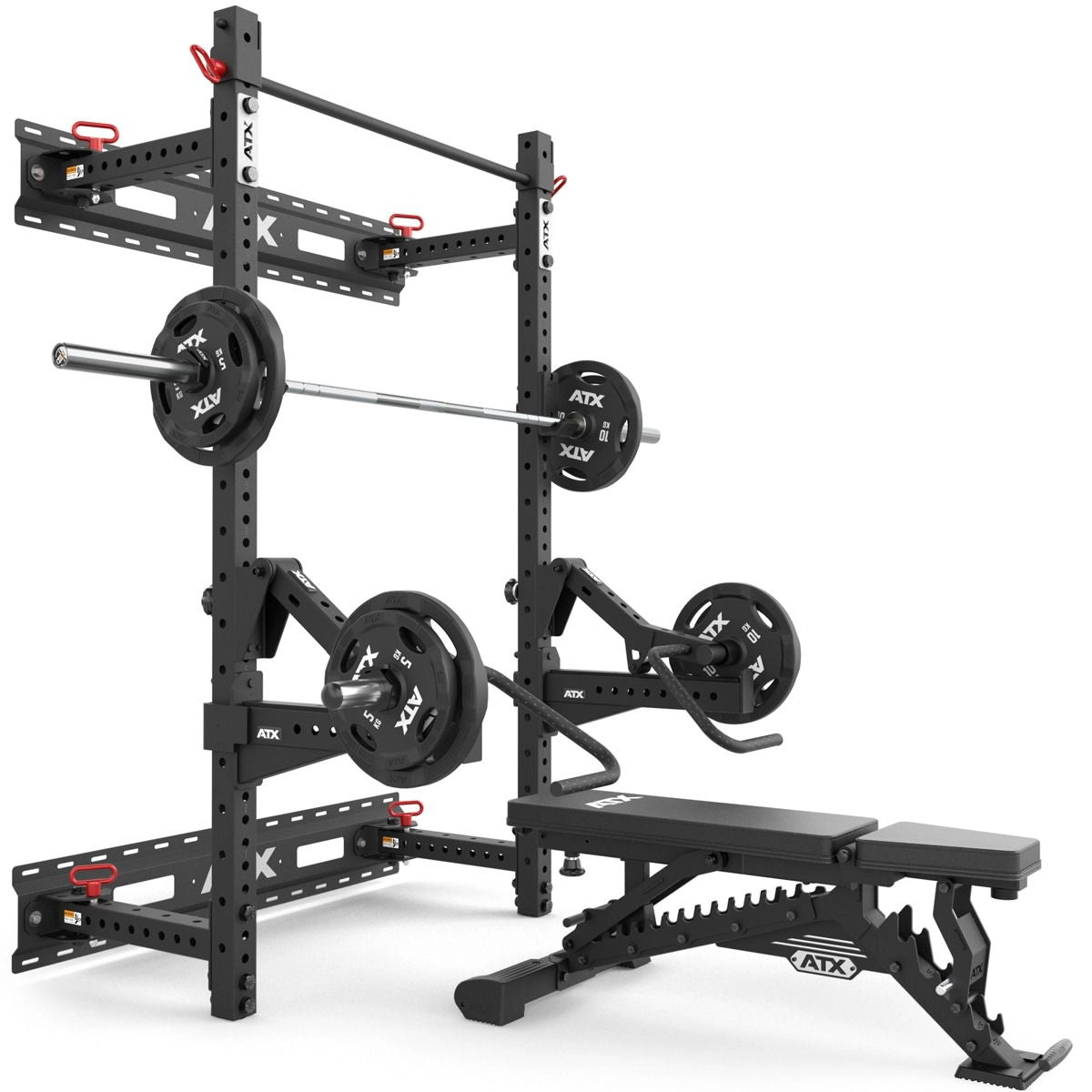

When the ATX® Fold Back Rack 750 is brought back to life, it opens up the most diverse training possibilities for the trainee. In combination with essential home gym equipment in the form of a barbell set and a multi-bench, the most effective basic exercises can already be performed safely on the ATX® Fold Back Rack 750.
These include above all the crème de la crème of multi-joint exercises such as squats, bench press, shoulder press and barbell rows, which as fundamental exercises significantly influence your training success.

The extremely stable ATX® Fold Back Rack 750 in independently certified studio quality withstands even the most brutal training loads. The included heavy-duty J-Hooks function as highly loadable barbell rests, which also have a thick protective rubber coating to protect the barbell and minimize training noise.

The ATX^® FOLD BACK RACK 750 is rounded off by the pull-up bar located at the top of the rack.
This pull-up device further expands the functionality of this unique rack, because pull-ups belong in every training plan of a serious athlete with high performance demands.

Scope of Delivery

ATX^® Fold Back Rack complete set including J-Hooks (MS-ATX-FBR-750-)

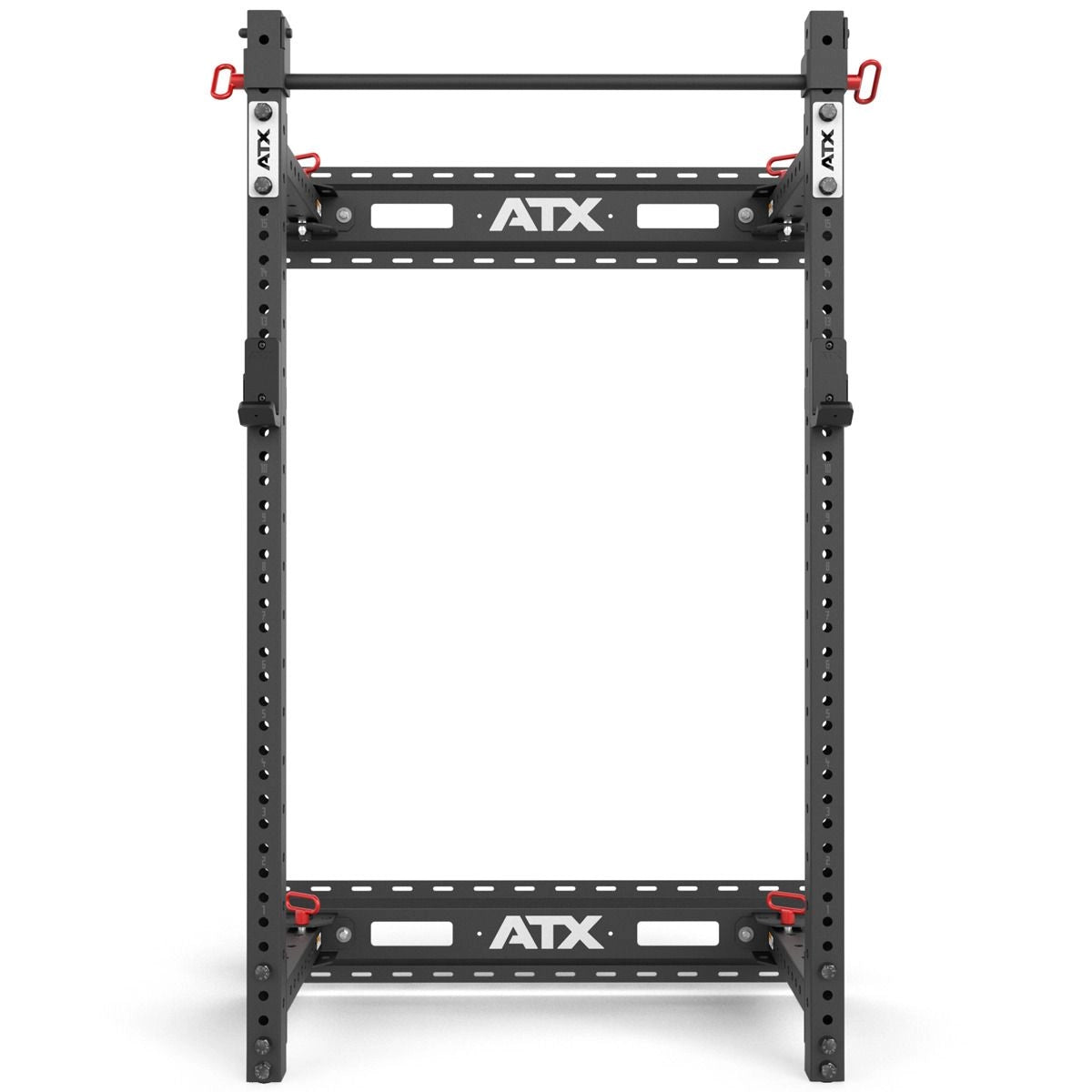

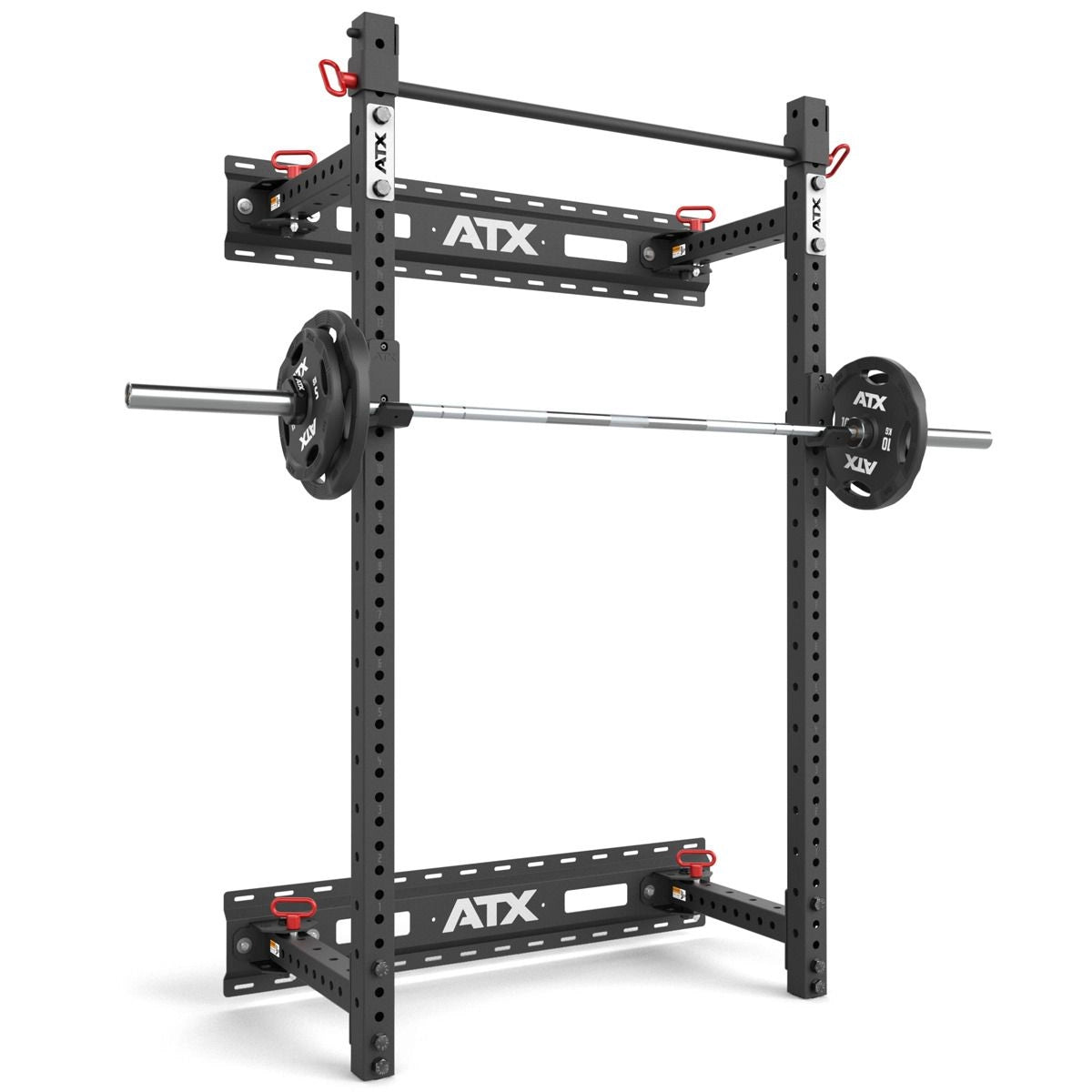

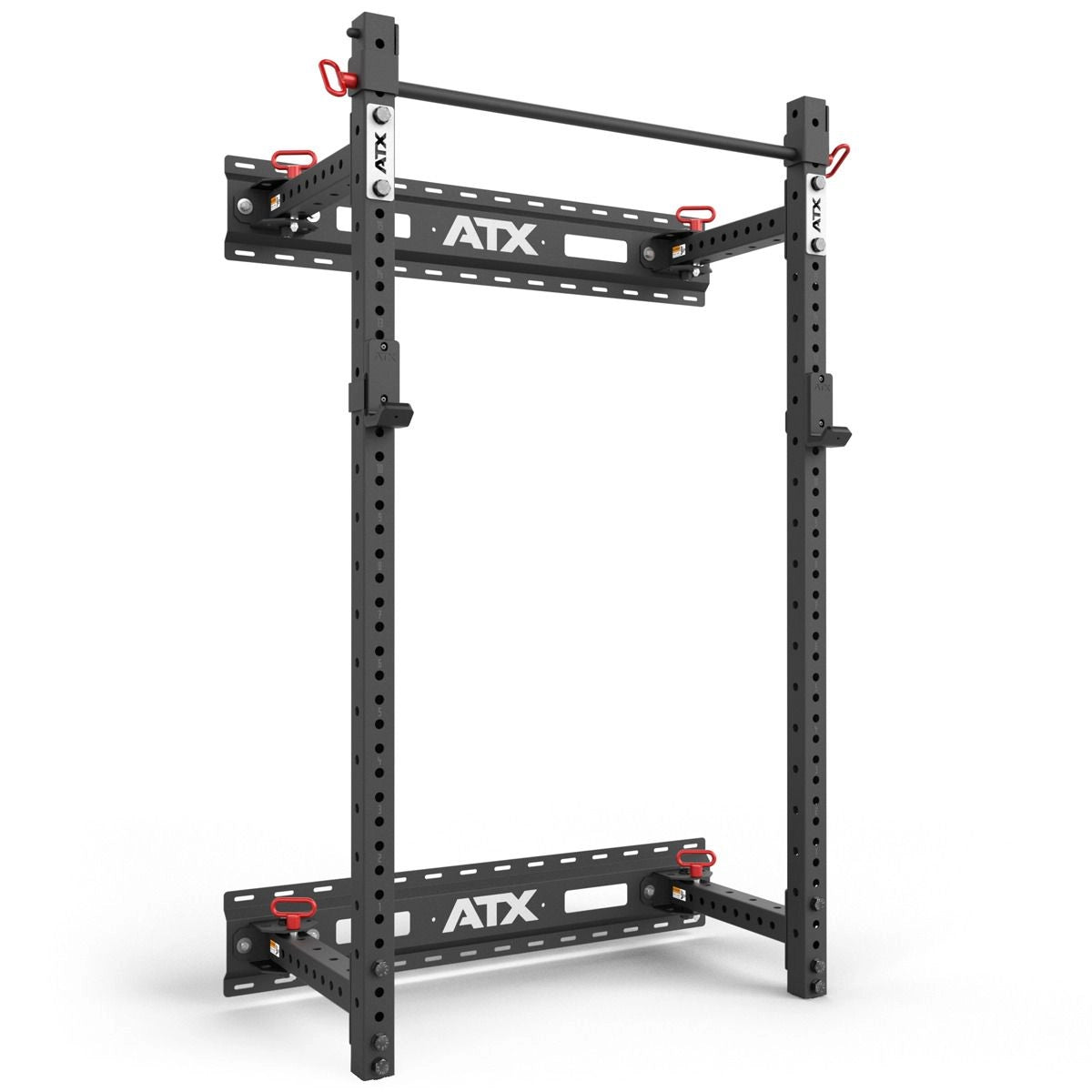

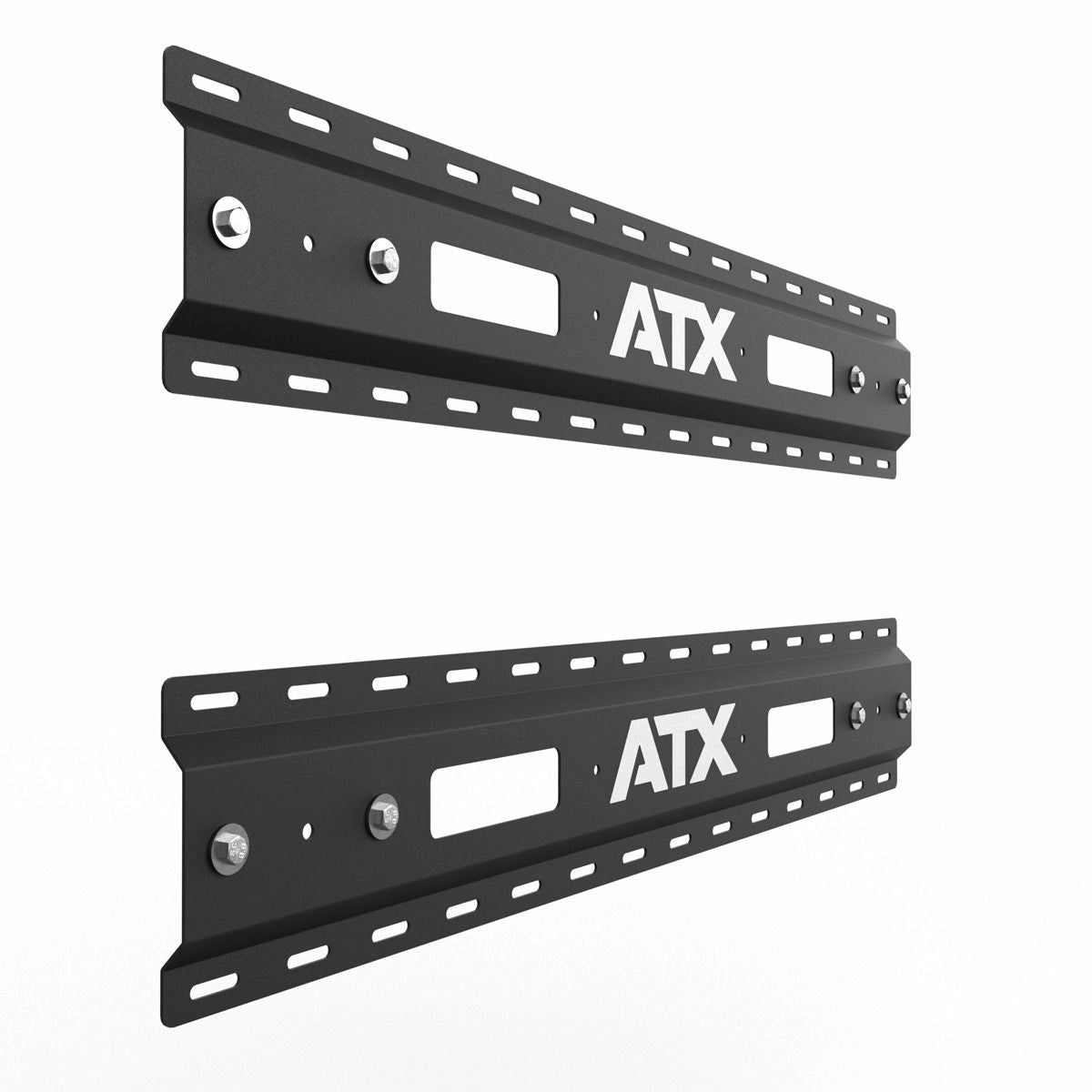

Tip: Make installation easier with the optionally available ATX^® Fold Back Rack mounting brackets!
Also ideal for visually enhancing the overall construction!

The consoles are made of 3 mm thick, multi-bent steel sheet, are 140 cm long and 25 cm high and have a wall distance of 2.5 cm. The scope of delivery includes a set of screws with which the four steel holders of the rack can be attached to the consoles. Dowels for fastening the consoles to the wall are not included in the scope of delivery. Sold in pairs.

Note

Example mounting consoles/mounting rails, spotter arms, dumbbells, weight plates, landmine, dip bars, weight benches and jammer arms are not included in the scope of delivery.

Delivery disassembled, incl. assembly instructions - easy assembly.

Accessories shown, such as mounting consoles, spotter arms, dumbbells, weight plates, landmine, dip bars, weight benches and jammer arms are not included in the scope of delivery.

Delivery excludes dowels - at least 8 dowels are required to fasten the two consoles.
The type of dowels depends on the nature of the wall - please consult a specialist if necessary.
