ATX® Power Bearing Bar 220 cm +700 kg - spring steel - bearing

ATX® Power Bearing Bar 220 cm - 700 kg spring steel

^ATX® Power Bearing Bars are precision-crafted barbells made from high-quality alloyed special steel/spring steel with a high-end finish. The bars exhibit extremely high tensile and compressive strength while maintaining elasticity. This allows the bars to be deformed up to a certain tension (elastic limit) and then elastically return to their original state without permanent deformation. The key to this is the optimal, high-quality alloy made from chromium, molybdenum, silicon, and manganese, among other ingredients. Whether for weightlifting or powerlifting, ^ATX® barbell bars withstand even the most extreme conditions and thus meet the highest demands.

Product details

• Material - special steel according to EN 102775-5
• Tensile Strength: 206000 psi = 206 K (K/KSI = Kilopound per Square inch)
• abrasion-resistant hard chrome plating

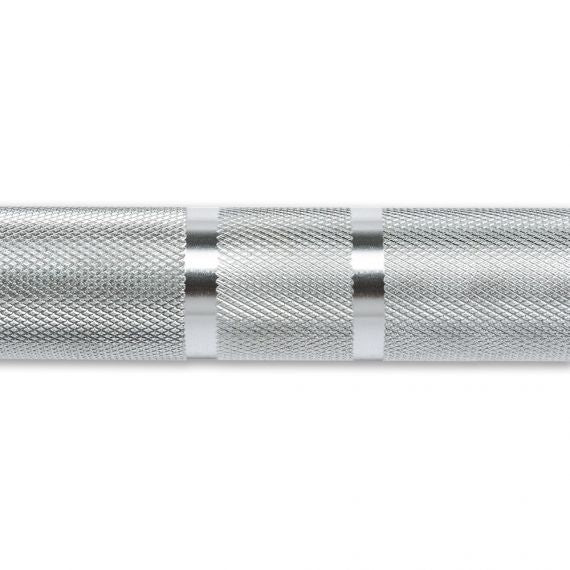

• Extra-grip precision knurling with double grip width marking

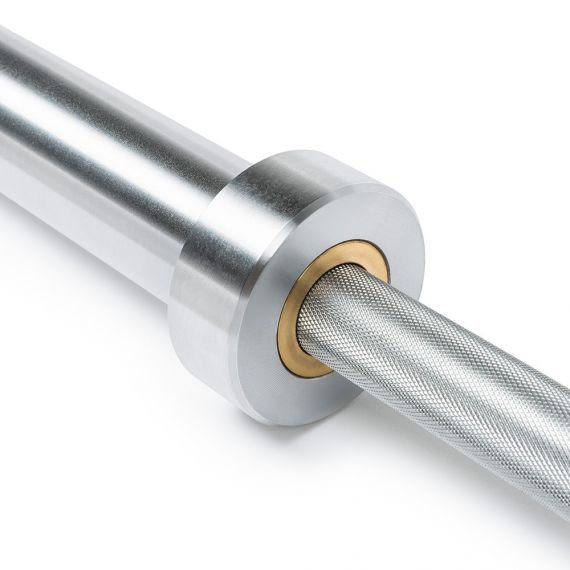

• Mounts Ø 50 mm, rotatable – with ball bearing
• suitable for all standard weight plates with a bore diameter of 50/51 mm

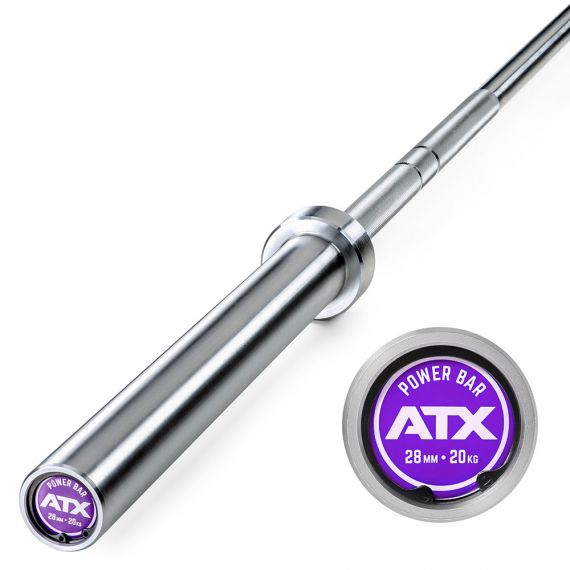

• Front sides high-quality encapsulated, with ATX ^® color code logo: Power Bearing Bar

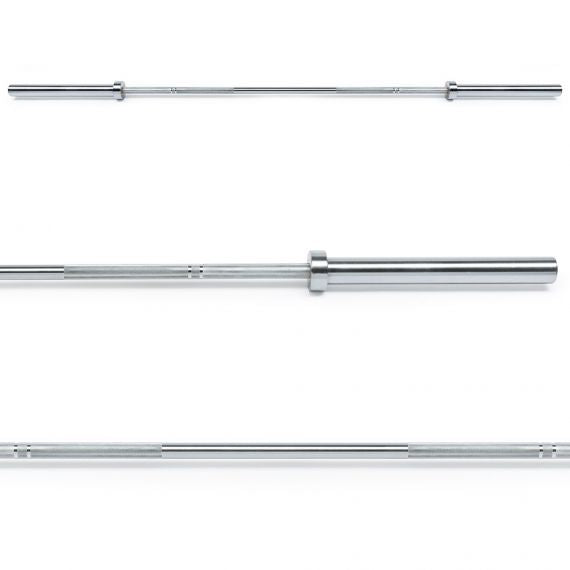

• Total length: 2200 mm
• Handle inner dimensions: 1310 mm
• Handle diameter: 28 mm
• Weight: 20 KG
• max. load capacity: 700 KG

The specified maximum load capacity of the barbell is only achieved under optimal conditions! The theoretically highest load capacity is possible for exercises with a wide grip, such as bench presses. With point-to-point, central load transfer, such as squats, the maximum load capacity is reduced! Failure to comply with the load limits and application areas specified in the tables may result in damage to the barbells! Exchanges and warranty claims are excluded in this case! The application-specific load limits can be found in the table below.

Maximum permissible weight load of the barbell bar

• Wide grip width: 700 KG - flat bench press
• Medium grip width: 600 KG - Deadlift
• middle/narrow grip width: 500 KG - Squats

Area of ​​application

• Fitness: YES
• Strength training: YES
• Weightlifting/Powerlifting: YES

ATX ^® offers first-class, tested, and proven equipment for professional use. ATX ^® barbells undergo the following material tests in an independent German testing laboratory:

• Tensile test according to DIN EN ISO 6892-1
  Tensile test acc. To DIN EN ISO 6892-1
• Rockwell hardness according to DIN EN ISO 6508-1
  Hardness Rockwell acc. DIN EN ISO 6508-1

  The barbell has the following values:
  Tensile Strength: 206000 psi = 206 K (K/KSI = Kilopound per Square inch)
  = / corresponds to 1420 N/mm2 HRC / Surface hardness: 44.0


Scope of delivery

1x ATX® Power Bearing Bar 220 cm +700 kg - spring steel

Item number: MS-LH-50-ATX-NB
