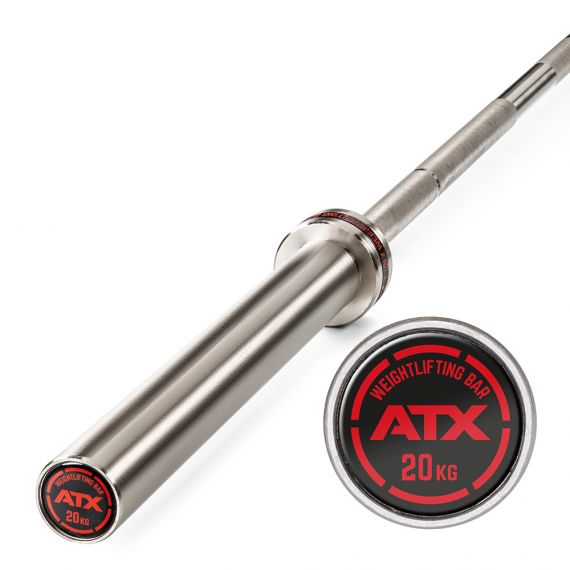

ATX® Weightlifting Training Bar

ATX® Weightlifting Training Bar

^ATX® Weightlifting Training Bar conforms to international standards. With a grip diameter of 28 mm, a total length of 2200 mm, and an internal grip dimension of 1310 mm, the bar is compatible with all professional racks, bench presses, and storage racks. With a tensile strength of 165,000 PSI (165 K), this bar is highly resilient and ideal for heavy professional strength training. The bar features precise, non-slip knurling (with center knurling) with international grip width markings. The mounts are rotatable—bearings with precision brass bushings ensure smooth, smooth rotation/spin. The barbell and mounts have a highly abrasion-resistant NiP chrome coating.

Product details of the barbell bar

• Material: refined special steel according to EN 10277-5

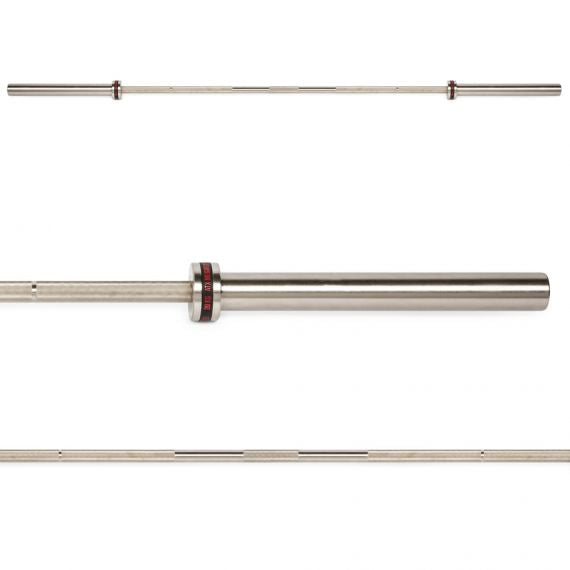

• Total length: 2200 mm
• Weight: 20 kg +/- 1%
• Surface coating: NiP-Chrome
• Maximum load capacity: 500 kg
• Handlebar diameter: 28 mm
• Handlebar inner dimensions: 1310 mm
• Weight plate holder: Ø 50 x 405 mm
• Rotatable: yes

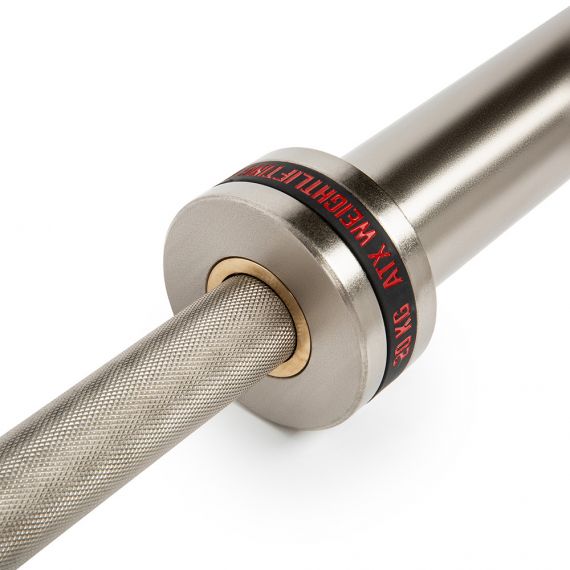

• Bearing: precision brass bushings
• Tensile strength: 165 KSI / 165000 PSI = 1137 N / mm

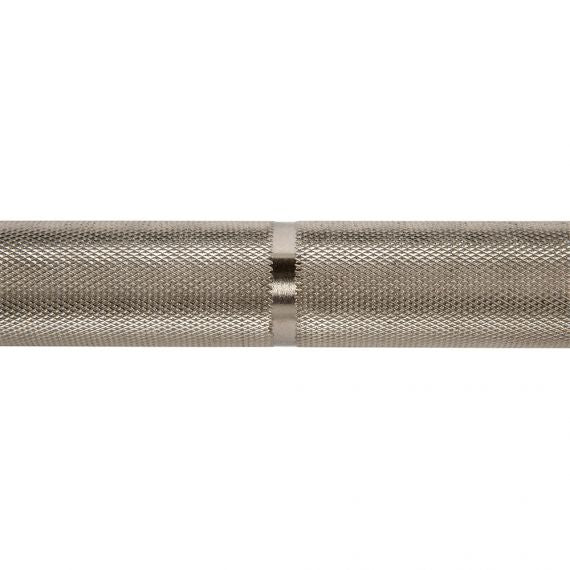

• Knurling: Precision knurling - extra grip
• Grip width marking: single - 910 mm
• Center knurling: yes

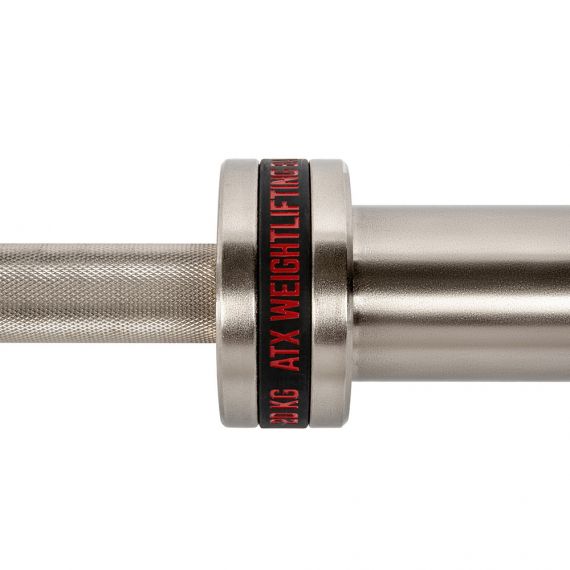

• Color code: rubber ring and end cap - red

scope

• Fitness: YES
• Strength training: YES
• Weightlifting: YES
• Powerlifting: YES

The stated maximum load capacity of the barbell is only achieved under optimal conditions! The theoretically highest load capacity is possible for exercises with a wide grip, such as bench presses. The maximum load capacity is lowest for point-to-point, central load transfer, such as squats.
Failure to comply with the load limits and application areas specified in the tables may result in damage to the dumbbells! Exchanges and warranty claims are excluded in this case! Please refer to the following table for the application-specific load limits.

Maximum permissible weight load of the barbell

• Wide grip width: 500 KG - flat bench press
• Medium grip width: 400 KG - Deadlift
• middle/narrow grip width: 300 KG - squats

Scope of delivery

1 x ATX® Weightlifting Training Bar

Item number: MS-LH-50-ATX-TWL

Tip

Check out our barbell collars to make your training safer.
